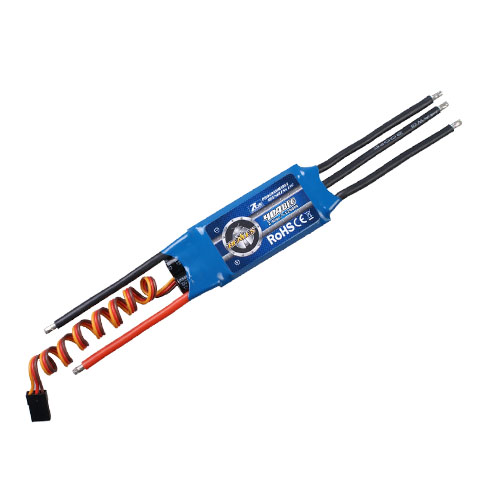

ZTW Beatles 40A Brushless ESC

Agotado


$1,018.51

Agotado

Recibir aviso de stock

Product ModelBeatles  40A BEC
Model Number3040101
Typebrushed/brushlessbrushless
High Voltage / NormalNormal
SpecificationsContinuous Current40A
Burst Current50A
Battery Cell5-12NC/2-4Lipo
BEC output5V/3A

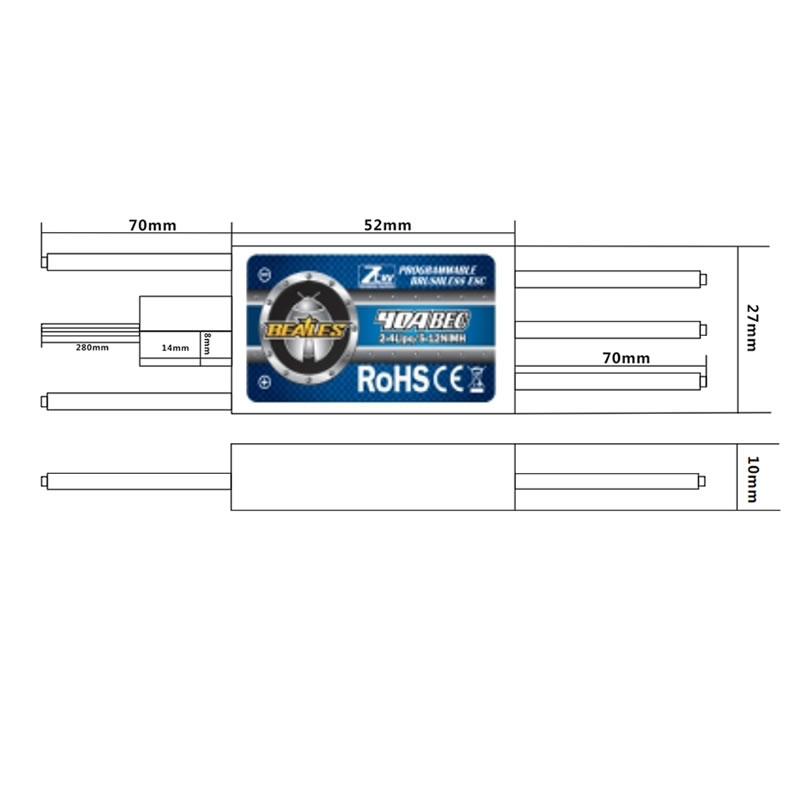

SizeWidth27mm
Length52mm
Height11mm
Weight36g
Wires & ConnectorsPower  Wires14#AWG,70mm-Red/70mm-Black
Motor Wires14#AWG,70mm-Black
Signal  Wires(Brown,orange and red)30C,280mm a normal JR male plug at one side
Power plugno
ESC Programing viaTransmitteryes
AIR Program Cardyes
LED Program Card
LCD Program Card
WiFi Module
USB program connector
FirmwareFirmware Upgrade
Programmable Item/TonesOption
           Throttle Calibration
(within the first 4 Sec )●●  ●●  ●●  ●●

1              Brake
            _ *  _ *  _ *   _ *  Brake On /Off
2               Battery type
            ~  ~  ~  ~  NiCad
        ~~   ~~   ~~   ~~  LiPo
3          Low Voltage Cutoff Threshold
      *_ _*  *_ _*  *_ _*  *_ _*  Low2.8V/50%
 *_ _ _*  *_ _ _*  *_ _ _*  *_ _ _* Medium3.0V/60%
*_ _ _ _* *_ _ _ _* *_ _ _ _* *_ _ _ _*  High3.2V/65%
4      Restore Factory Setup Defaults
             —  — — —  Restore
5             Timing Setup
–  –  –  –  Automatic (7-30°)
         – –  – –  – –  – –  Low (7-22°)
     – – –  – – –  – – –  – – –  High (22-30°)
6           Acceleration
         ∨∨ ∨∨ ∨∨ ∨∨   Soft
           ∨  ∨  ∨  ∨    Normal
    ∨∨∨  ∨∨∨  ∨∨∨  ∨∨∨    Hard
7            Heli Mode
           _*_  _*_  _*_  _*_  Rpm off
         _**_  _**_  _**_  _**_ Heli Mode 1
       _***_  _***_  _***_  _***_ Heli Mode2
8             Motor Rotation
            W  W  W  W  Forward/ Reverse
9           Switching Frequency
            //  //  //  //  8kHz
                   16kHz
10         Low Voltage Cutoff Type
          _ˉ_ˉ_ˉ_ˉ  Reduce Power
         ˉ_ ˉ_ ˉ_ ˉ_  Hard Cut Off
DefaultBrake:OFF
Battery type Detect:LiPo with Automatic Cell
Low voltage Cutoff threshold:     Medium (3.0V/60%)
Timing Setup:Automatic
Acceleration :Soft Acceleration
Heli Mode :RPM OFF
Motor Rotation: Forward
Frequency :8kHz
Low Voltage Cutoff Type:          Reduce power
