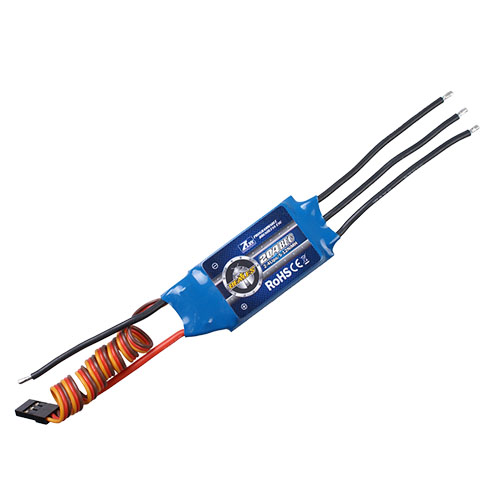

ZTW Beatles 20A Brushless ESC

Agotado

$12,937.50

Agotado

Recibir aviso de stock

Product Model Beatles  20A BEC
Model Number 3020101
Type brushed/brushless brushless
High Voltage / Normal Normal
Specifications Continuous Current 20A
Burst Current 30A
Battery Cell 5-12NC/2-4Lipo
BEC output 5V/2A

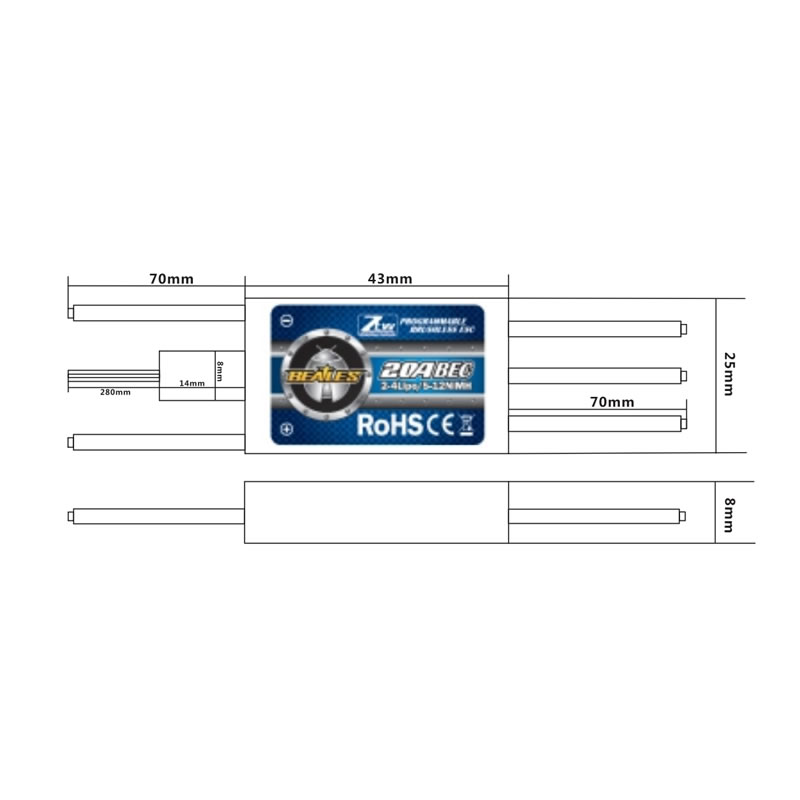

Size Width 25mm
Length 43mm
Height 8mm
Weight 24g
Wires & Connectors Power  Wires 18＃AWG，70mm-Red/70mm-Black
Motor Wires 18＃AWG，70mm-Black
Signal  Wires （Brown,orange and red）30C，280mm a normal JR male plug at one side
Power plug no
ESC Programing via Transmitter yes
AIR Program Card yes
LED Program Card
LCD Program Card
WiFi Module
USB program connector
Firmware Firmware Upgrade
Programmable Item/Tones Option
           Throttle Calibration
(within the first 4 Sec )●●  ●●  ●●  ●●

1              Brake
            _ *  _ *  _ *   _ *   Brake On /Off
2               Battery type
            ～  ～  ～  ～   NiCad
        ～～   ～～   ～～   ～～   LiPo
3          Low Voltage Cutoff Threshold
      *_ _*  *_ _*  *_ _*  *_ _*   Low2.8V/50%
 *_ _ _*  *_ _ _*  *_ _ _*  *_ _ _*  Medium3.0V/60%
*_ _ _ _* *_ _ _ _* *_ _ _ _* *_ _ _ _*   High3.2V/65%
4      Restore Factory Setup Defaults
             —  — — —   Restore
5             Timing Setup
–  –  –  –   Automatic (7-30°)
         – –  – –  – –  – –   Low (7-22°)
     – – –  – – –  – – –  – – –   High (22-30°)
6           Acceleration
         ∨∨ ∨∨ ∨∨ ∨∨    Soft
           ∨  ∨  ∨  ∨     Normal
    ∨∨∨  ∨∨∨  ∨∨∨  ∨∨∨     Hard
7            Heli Mode
           _*_  _*_  _*_  _*_   Rpm off
         _**_  _**_  _**_  _**_  Heli Mode 1
       _***_  _***_  _***_  _***_  Heli Mode2
8             Motor Rotation
            W  W  W  W   Forward/ Reverse
9           Switching Frequency
            //  //  //  //   8kHz
                    16kHz
10         Low Voltage Cutoff Type
          ＿ˉ＿ˉ＿ˉ＿ˉ   Reduce Power
         ˉ＿ ˉ＿ ˉ＿ ˉ＿   Hard Cut Off
Default Brake：OFF
Battery type Detect：LiPo with Automatic Cell
Low voltage Cutoff threshold：     Medium (3.0V/60%)
Timing Setup：Automatic
Acceleration ：Soft Acceleration
Heli Mode ：RPM OFF
Motor Rotation: Forward
Frequency ：8kHz
Low Voltage Cutoff Type：          Reduce power
