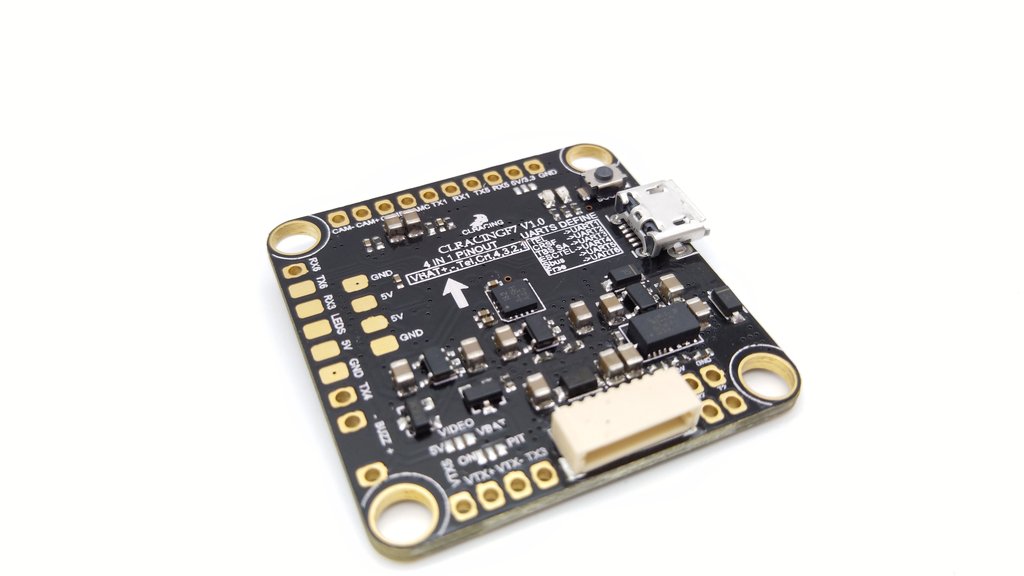

The latest version of the CL Racing F7 is here. This CLF7 FC is packed full of the latest features and technology in the industry, like camera control. Loved because of its dependability and affordability, the CL Racing F7 is a fan favorite!
Looking for the CL Racing F4S? We’ve got you covered!
- MCU: STM32F722RET6 216MHz
- 6-Axis ICM20602 32K
- Build in Beta flight OSD
- Up to 8S(36V) direct battery power
- Build in Voltage monitoring resistor
- Build in 5V/1.5A BEC and 3.3V
- Led strip share 5V with 5V/1.5A BEC
- 6 UARTS: UART1 UART2, UART3, UART4, UART5 UART
- Build in Camera Control pin camera connection
- Buzzer pads for external buzzer
- VBAT Polarity protection
- build in True PIT mode(turn off the VTX completely)
- 128Mb Flash chip for blackbox
- 1x CLRACING F7 FC
- 6x yellow soft mount grommets
- 1x 8-pin wire harness
You can find the most updated manual here.
