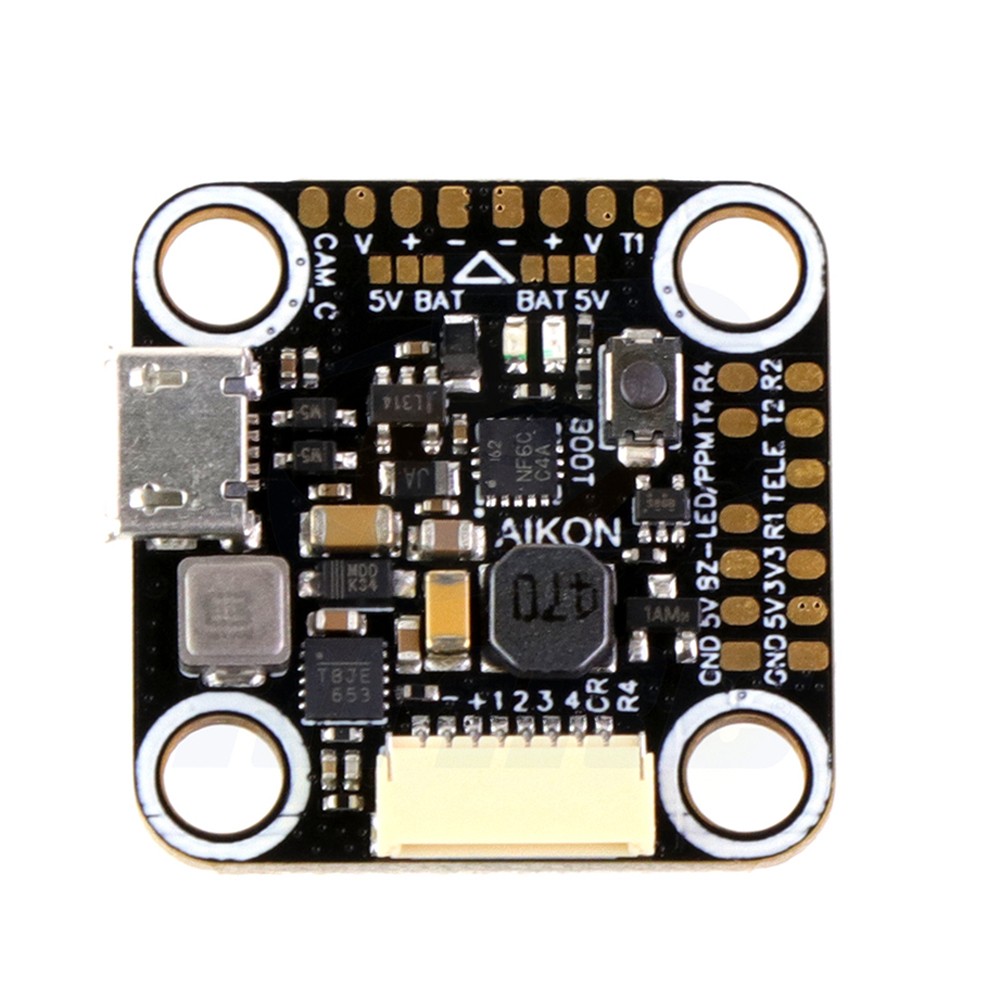

Aikon F4 Mini 20×20 Flight Controller

En stock


$2,345.79

En stock

Aikon F42020 Flight Controller

The Aikon flight controller is a new generation flight controller designed specifically to work with the Aikon AK32PIN 4-in-1s. We’ve packed all the greatest features into one seamless flight experience.

What makes the Aikon F42020 amazing?

  • 32khz capable
  • 168mhz F4 processor
  • Hardware UARTS:
    • UART1 for SerialRX
    • UART3 for S.PORT
    • UART4 for ESC telemetry
    • UART2 available for CRSF or general use
  • Software serial:
    • SOFTSERIAL1 for VTX control
  • Onboard OSD and Blackbox
  • LED outputs
  • Conveniently located ESC signal ground and telemetry pads
  • Quick connection cable for 4-in-1 ESCs, works out of the box with the Aikon AK32PIN 4-in-1s
  • On-board voltage regulator up to 6S

Aikon F4 specifications

Battery2-6s
Mount Hole220*20mm
FirmwareBetaflight AIKONF4 Target
MCUSTM32F405
IMUICM-20602
BlackboxSPI 16MB
Weight7g
