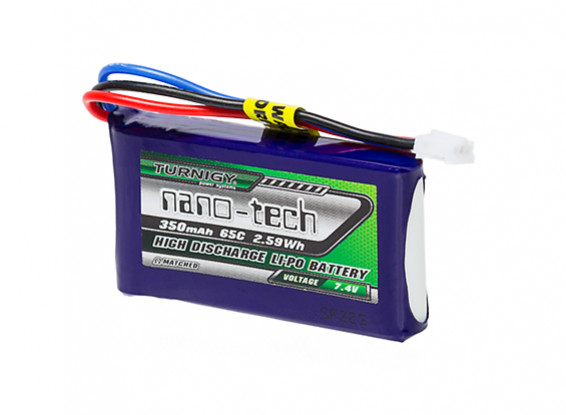

More than just a fancy name. TURNIGY nano-tech Lipoly batteries were designed from the ground up with serious performance in mind. Utilising an advanced LiCo nano-technology substrate that allows electrons to pass more freely from anode to cathode with less internal impedance. In short; less voltage sag and a higher discharge rate than a similar density lithium polymer (non nano-tech) batteries.
For those who love graphs, it means higher voltage under load, straighter discharge curves and excellent performance. For pilots, it spells stronger throttle punches and unreal straight-up performance. Excellent news for 3D pilots!
Unfortunately with other big brands; numbers, ratings and graphs can be fudged. Rest assured, TURNIGY nano-techs are the real deal, delivering unparalleled performance!
Before making a battery purchase, there are a few things you need to consider. Firstly, what are you powering? The type of hobby vehicle you are powering will determine whether you use a soft battery pack or a hardcase battery pack. For example, if you’re flying an RC Plane or Multirotor Drone, you would normally use a soft Lipo pack. However, if you’re using an RC Car a Hardcase battery pack will prevent the battery from being pierced if you crash.
Secondly, it’s important to know what battery capacity (mAh) you need, the cells count (S) and the optimal discharge rate (C rating). This will also be determined by the vehicle you are using the battery for.
Voltage: 2S1P / 2 Cell / 7.4V
Discharge: 65C Constant / 130C Burst
Weight: 31g (including wire, plug & case)
Discharge Plug: JST-PH
Advantages over traditional Lipoly batteries;
• Power density reaches 7.5 kw/kg.
• Less Voltage sag during high rate discharge, giving more power under load.
• Internal impedance can reach as low as 1.2mO compared to that of 3mO of a standard Lipoly.
• Greater thermal control, pack usually doesn’t exceed 60degC
• Swelling during heavy load doesn’t exceed 5%, compared to 15% of a normal Lipoly.
• Higher capacity during heavy discharge. More than 90% at 100% C rate.
• Fast charge capable, up to 15C on some batteries.
• Longer Cycle Life, almost double that of standard lipoly technology.
The nano-core technology in lithium ion batteries is the application of nanometer conductive additives. The nanometer conductive additives form ultra-strong electron-conducting networks in the electrodes which can increase electronic conductivity.
These additives create the ability for imbibition in the carrier liquid to supply more ion channels. This improves the ability of ion transmission and ion diffusion. Through improving electronic conductivity and ion transmission, the impedance is reduced and the polarization of high rate discharge decreases greatly.
