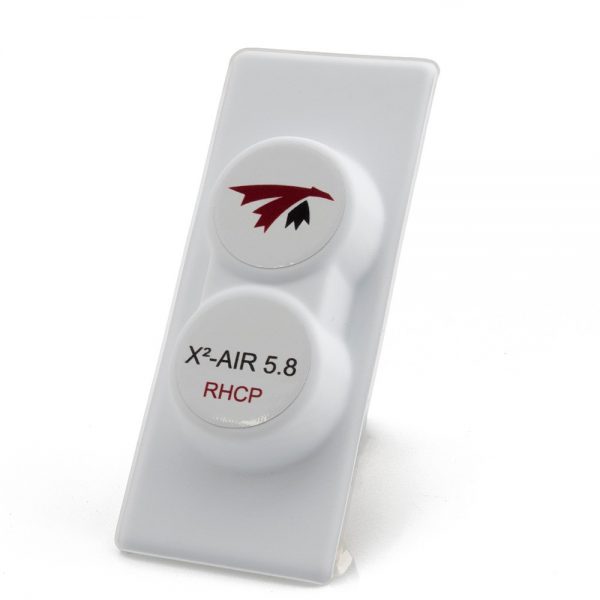

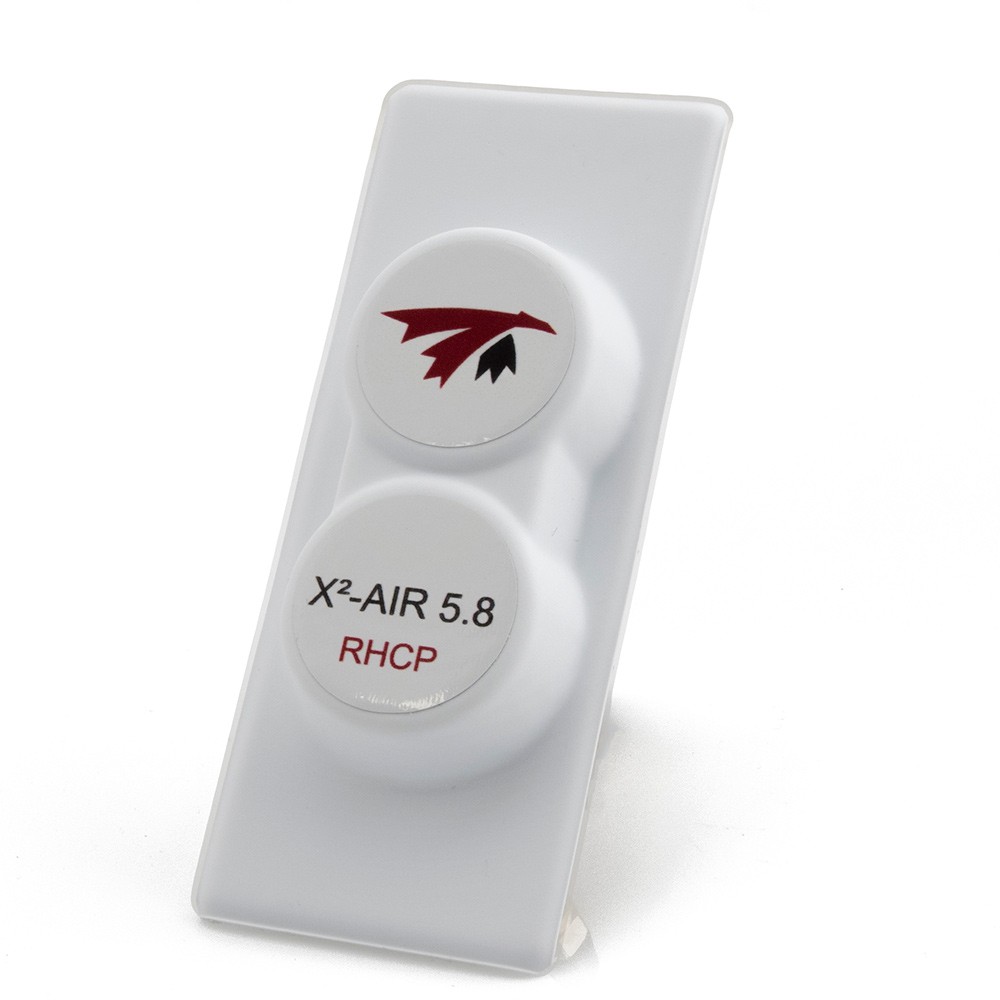

TrueRC 5.8GHz X²-AIR Antenna RHCP

Disponible para reserva


$5,295.36

Disponible para reserva

Recibir aviso de stock

What’s better than a crosshair? Two crosshairs! 13dBi, super wide beam, maximum axial ratio, only 45g! By pairing two of our famous X-AIR 5.8 you get more gain AND wider beam!  Of course, there’s a compromise which is reduced vertical beam width, but good  good FPV don’t happen up high 🙂  A novel approach was taken to match the two antennas together and lose virtually no RF energy in the process. The result is an unmatched efficiency. Don’t worry, at 45g only, you won’t feel it on your goggles. Each unit is tested on professional antennas tester (agilent) for SWR, gain and circularity.

Specs

  • Polarization: RHCP
  • Frequency: 5.8GHz
  • Gain: 13 dBic
  • Axial Ratio: 1 (perfect)
  • Beam-width Horizontal: 150deg
  • Beam-width Vertical: 45deg
  • Hor. beam @-3dB**: 68deg.
  • Vert. beam @-3dB**: 24deg.
  • Connector: SMA male
  • Dimension: 2.1″x2.1″x0.6″ (SMA cable length of 2″)
