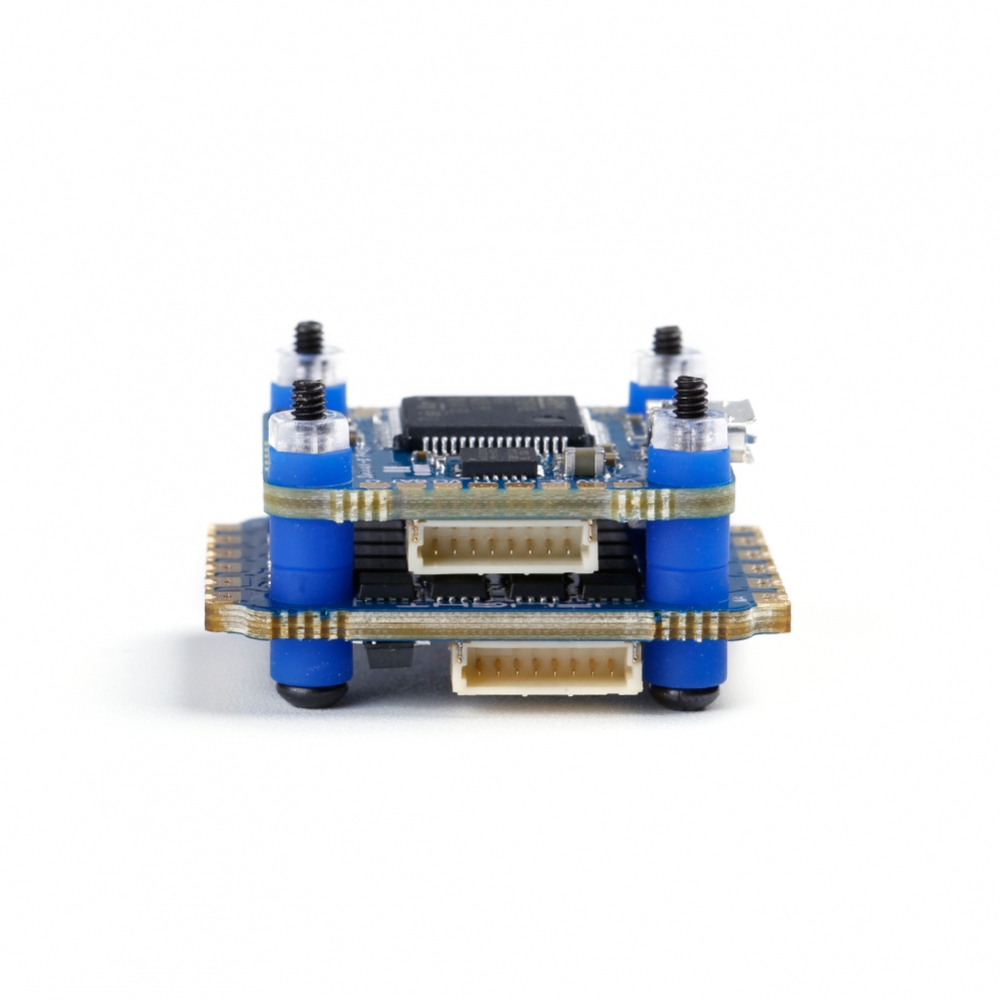

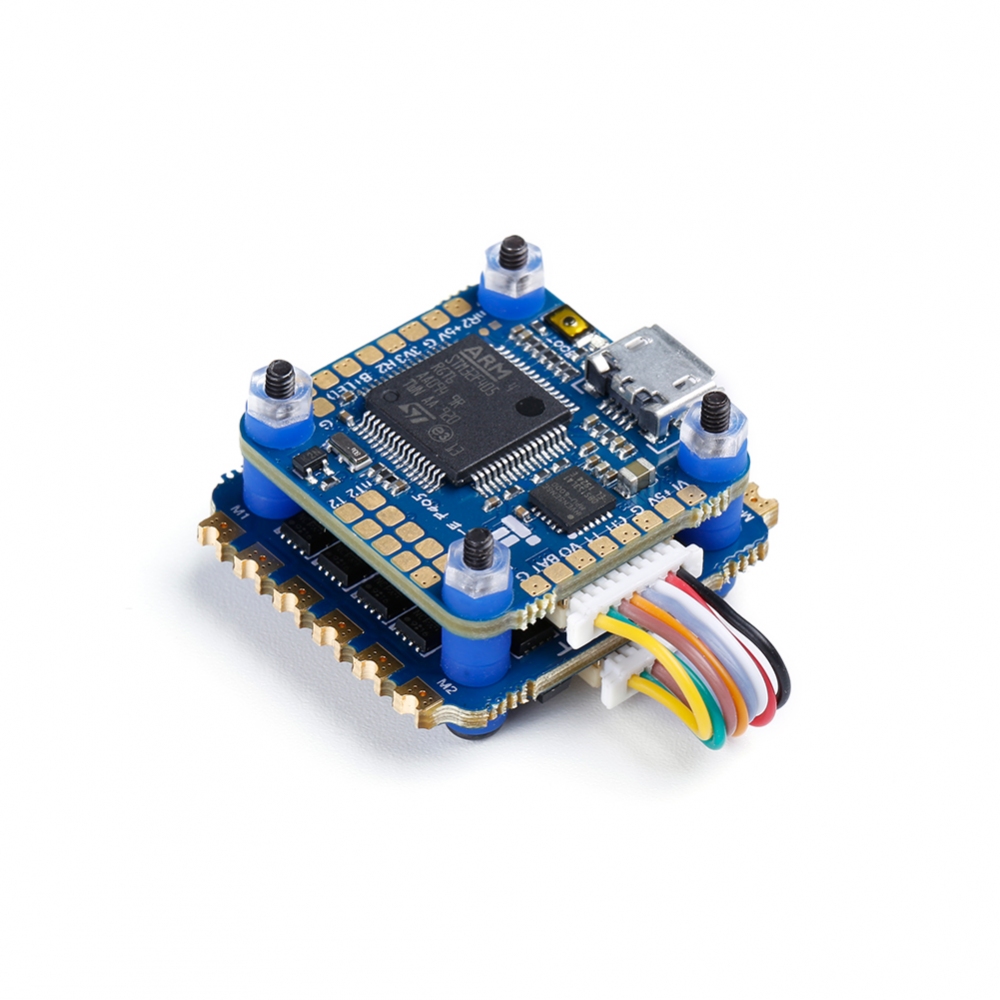

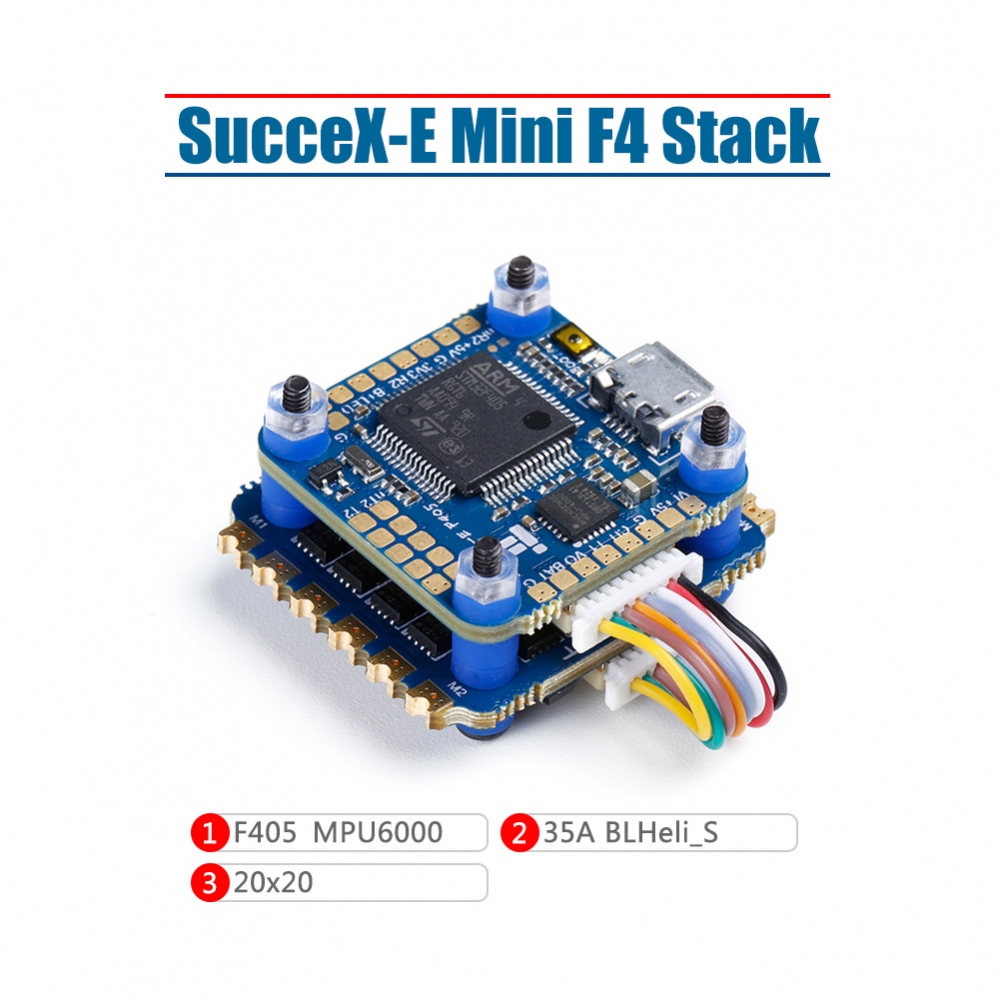

SucceX-E Mini F4 35A 2-6S Flight Stack (MPU6000)

Agotado


$4,565.52

Agotado

Recibir aviso de stock

PRODUCT DESCRIPTION

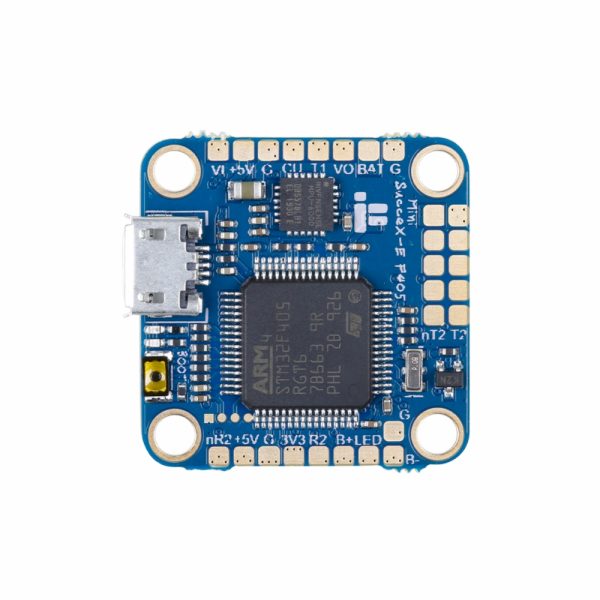

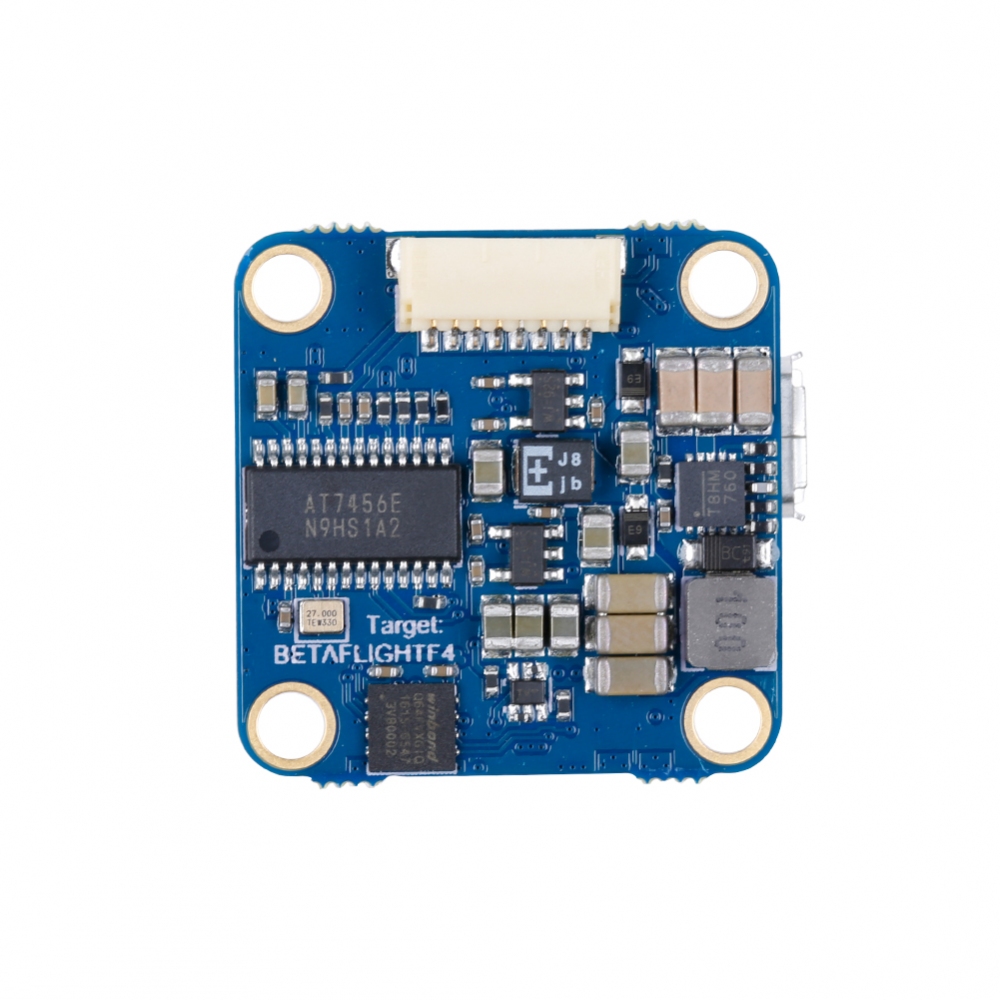

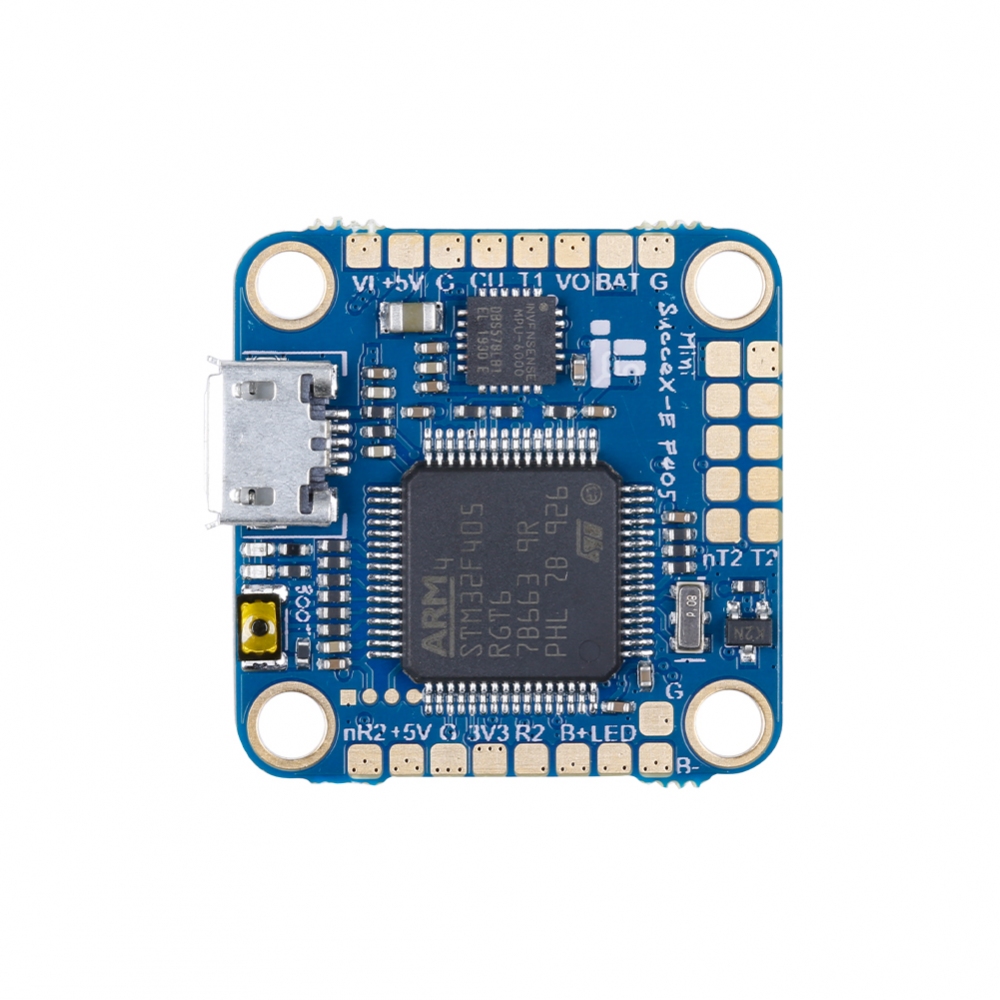

FC // SucceX-E Mini F4


Specifications:

– MCU:168MHz STM32F405

– Gyro:MPU6000

– Blackbox:8MB

– Betaflight OSD:YES

– BEC:5V 2.5A

– Uarts:5

– ESC Telemetry:yes

– INA Pad:nuart2

– Input voltage:2-6S

– Size:25*25mm /20*20mm φ3 mounting

– Weight: 4g

Physical

– Mounting hole:20*20mm,φ3mm

– Size:25*25mm

Download:

SucceX-E mini F4 Manual

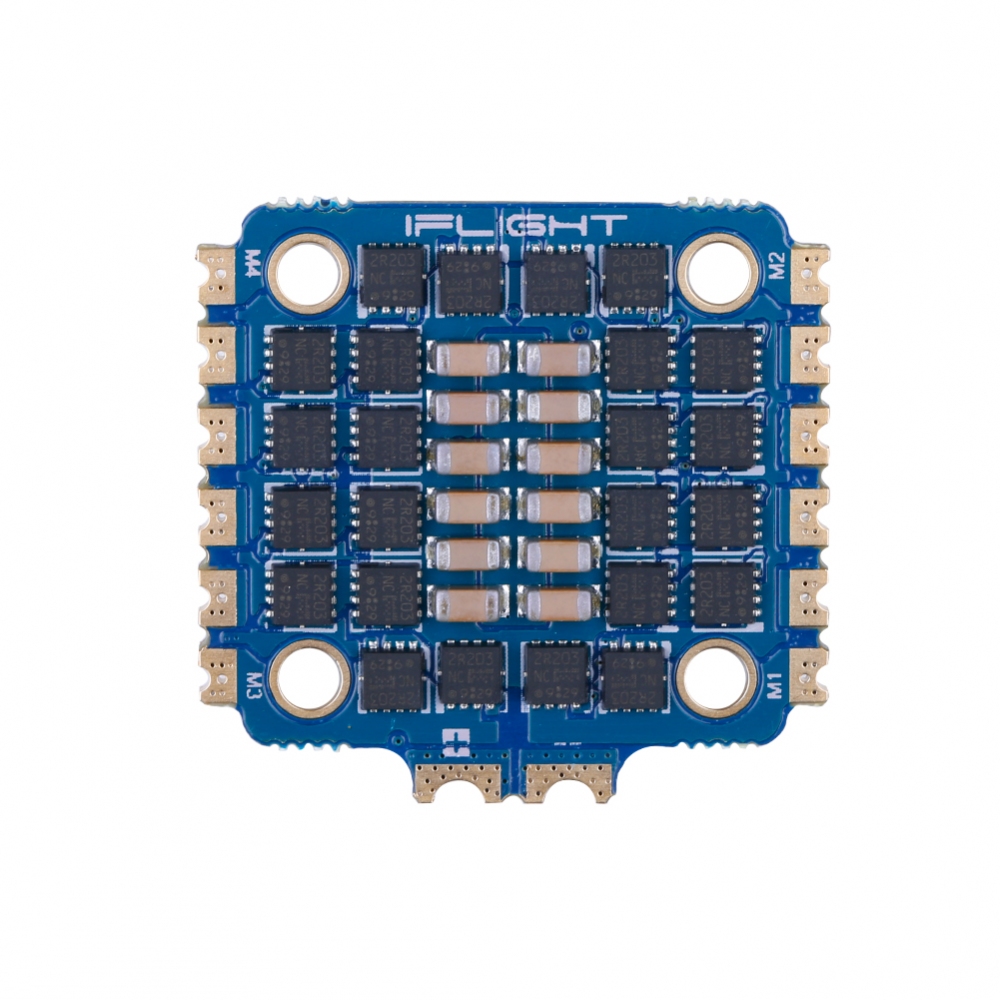

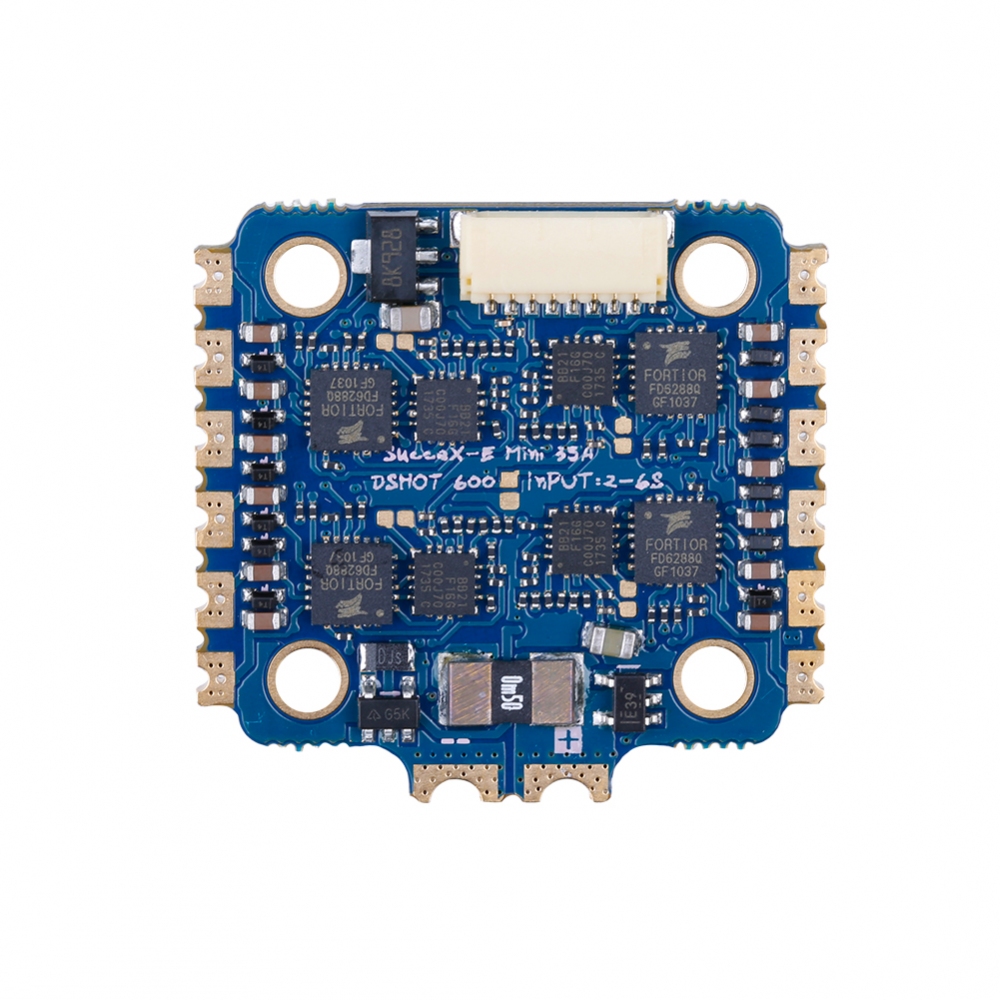

ESC // SucceX-E Mini 35A

Top Features:

– 6 layers double-sided PCB board

– 2oz 1.4mm thick power board

– TDK MLCC Low ESR ceramic capacitors

– Top grade 2R203 MOSFET

Specification:

  • MCU: BB21 F16G
  • BLHeliS
  • Capacitance: 470uF/50V
  • Current Sensor: Yes
  • Input: 2-6S LIPO
  • Constant: 35A / Burst: 40A
  • BEC: No
  • Supports up to Dshot1200, Proshot, Oneshot, Multishot
  • Target: G-H-30
  • BLHeliSuite download: http://www.mediafire.com/file/1tn449x6815upat/BLHeliSuite16714901.zip/file
  • Weight:6.9g
  • Mounting pattern: 20*20, φ3mm with Grommets φ2mm

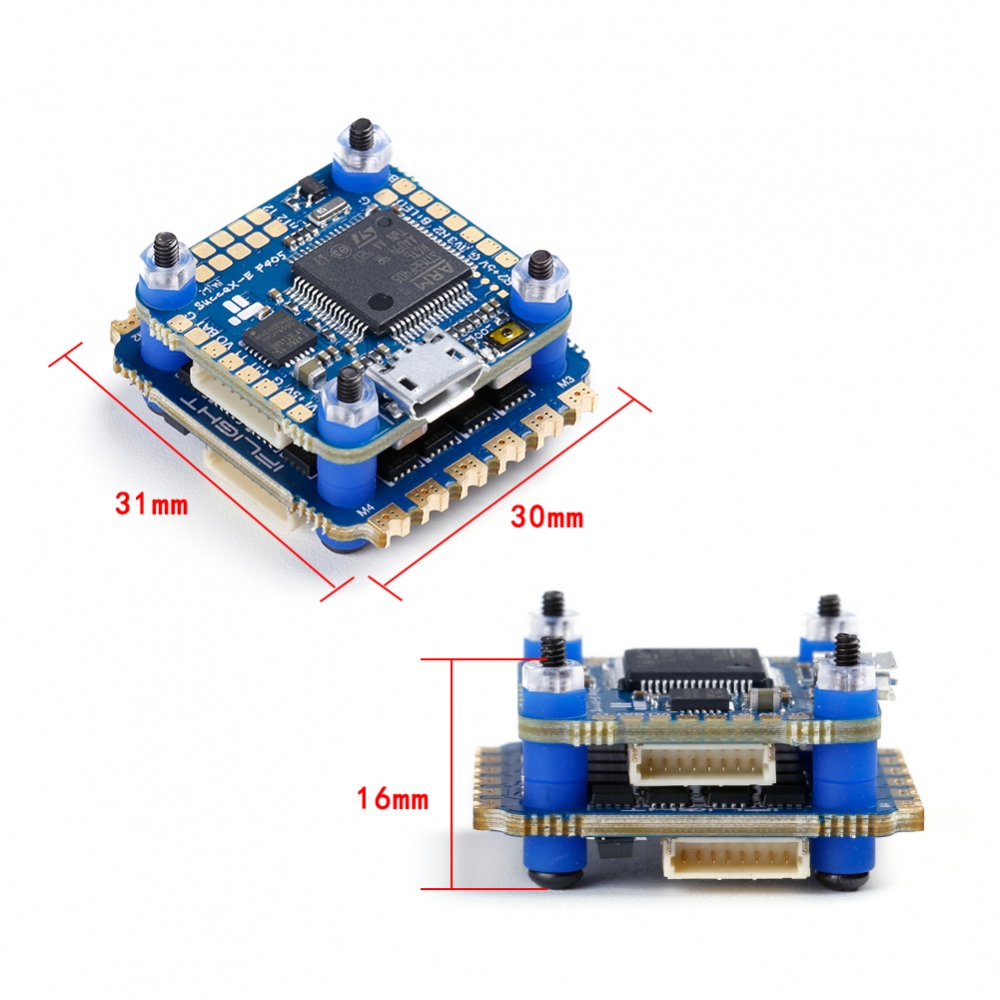

  • Dimensions31*30mm (including the power pads)

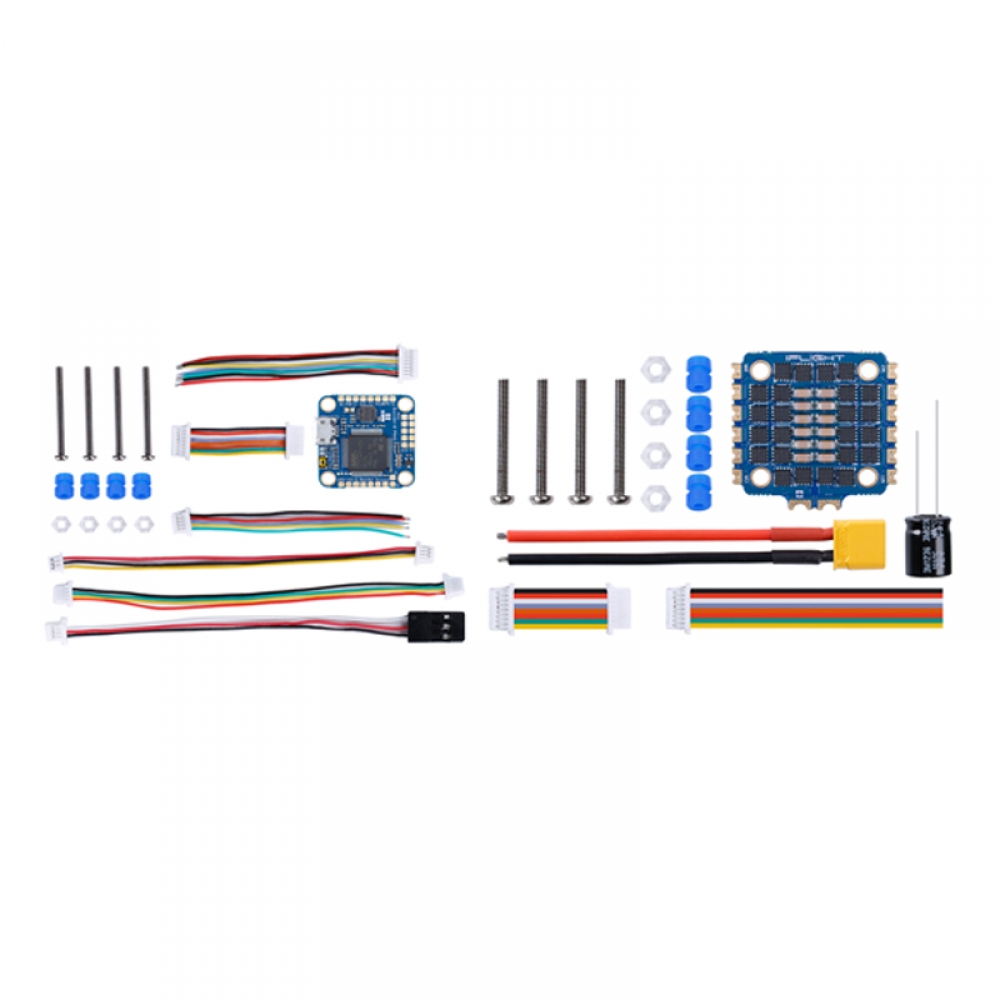

Package included:

-1pc x SucceX-E mini F4 Flight controller
-1pc x SucceX-E mini 35A 4in1 ESC
