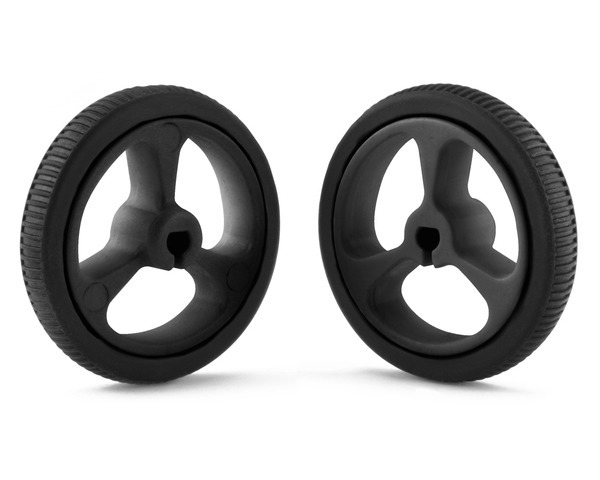

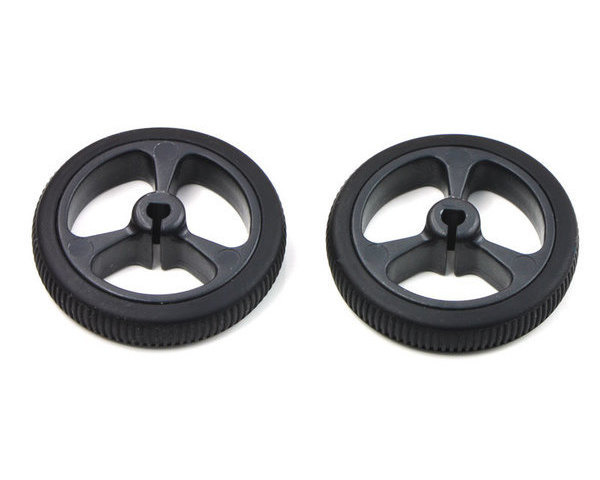

Pololu Wheel 32×7mm Pair – Black

These black plastic wheels have silicone tires and measure 32 mm (1.26″) in diameter, and they press-fit onto the 3mm D shafts on many of our motors, including our micro metal gearmotors and our mini plastic gearmotors. This product is a pair of wheels.

Overview

These wheels are great for robotics, custom RC vehicles, or any other project you need to get rolling. They measure 32 mm (1.26″) in diameter and are designed to press-fit securely onto D output shafts with a diameter of 3 mm. They are compatible with many of our gearmotors, including our micro metal gearmotors and our mini plastic gearmotors. The included silicone tires, which feature horizontal treads for improved traction, are also available separately.

These are the same wheels that are used on the 3pi robot.

The left picture below shows this wheel mounted to a micro metal gearmotor, and the right picture below shows the wheel mounted to a mini plastic gearmotor.

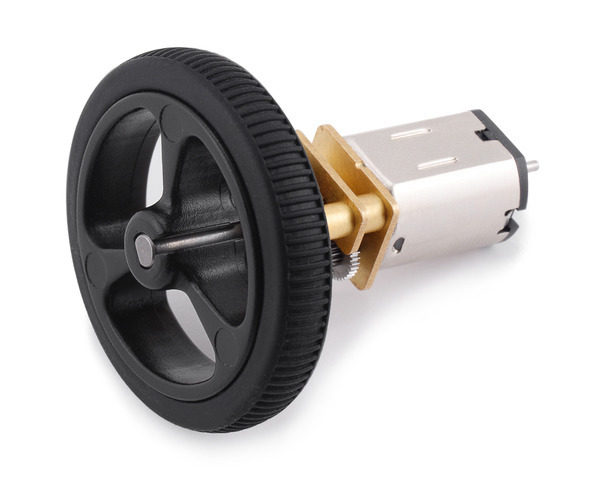

Pololu Wheel 32×7mm on a Micro Metal Gearmotor.

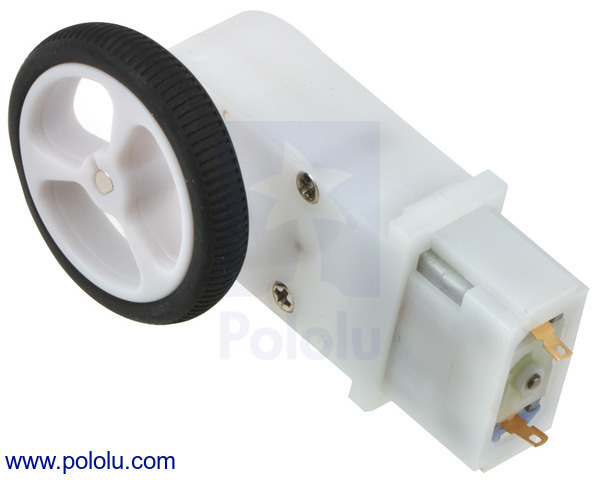

Mini Plastic Gearmotor, 90° 3mm D-Shaft Output with Pololu Wheel 32×7mm.

Details for item #1087

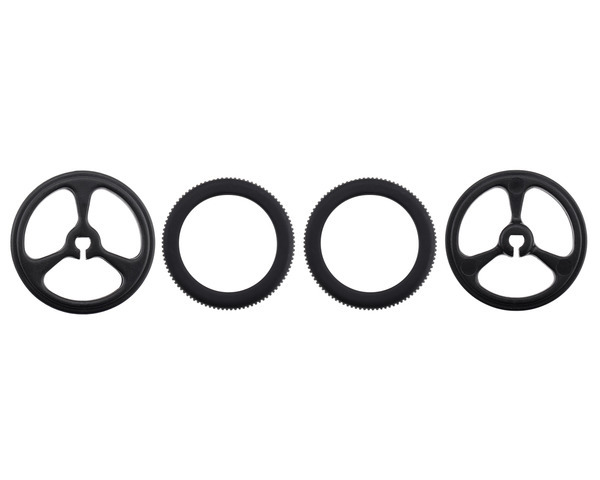

Parts included with Pololu Wheel 32×7mm Pair – Black.

This is the black version of our 32×7mm wheel pair. These same-sized wheels are also available with white plastic hubs.

Other wheel options

We have similar wheels available in different sizes and colors:

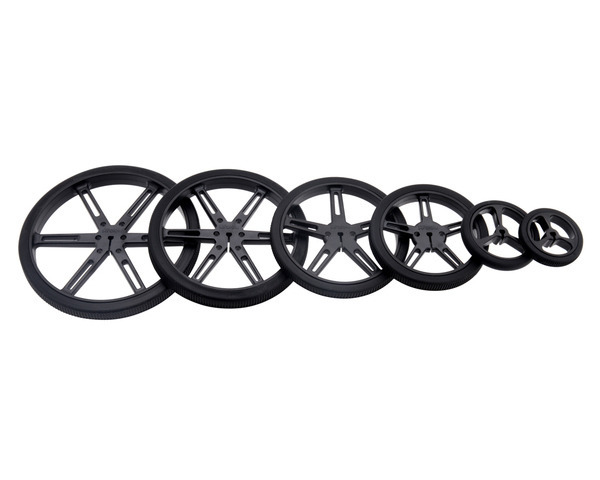

Black Pololu Wheels with 90, 80, 70, 60, 40, and 32 mm diameters (other colors available).

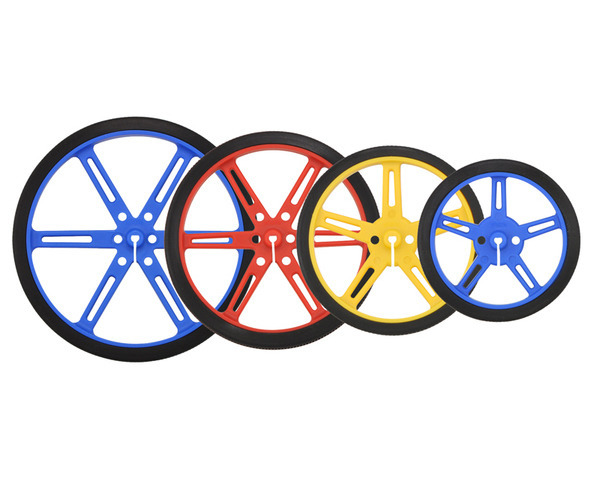

Pololu Wheels with 90, 80, 70, and 60 mm diameters in three colors: blue, red, and yellow.

Dimensions

General specifications

Notes:

1

Per wheel, including tire.

2

D-shaped hole for press fit onto Pololu Micro Metal Gearmotors and Mini Plastic Gearmotors.

Pololu Wheel 32×7mm Pair – Black.

Pololu Wheel 32×7mm Pair – Black.

Parts included with Pololu Wheel 32×7mm Pair – Black.

Pololu Wheel 32×7mm on a Micro Metal Gearmotor.

Mini Plastic Gearmotor, 90° 3mm D-Shaft Output with Pololu Wheel 32×7mm.

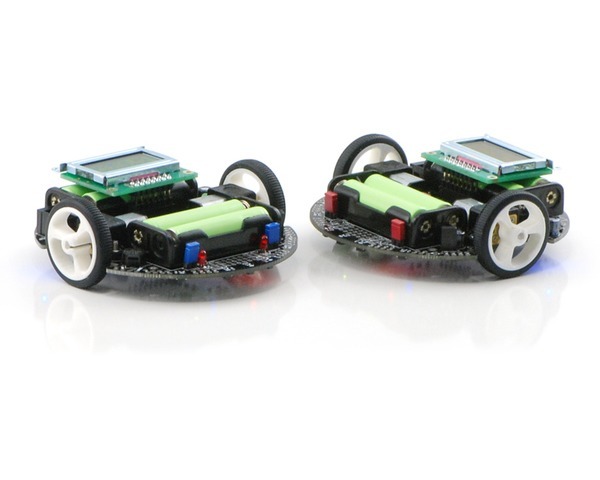

Pololu 3pi robots.

Black Pololu Wheels with 90, 80, 70, 60, 40, and 32 mm diameters (other colors available).

Pololu Wheels with 90, 80, 70, and 60 mm diameters in three colors: blue, red, and yellow.

File downloads

Dimension diagrams for Pololu Wheels (2MB pdf)

This file contains dimension diagrams for the 32×7mm, 40×7mm, 60×8mm, 70×8mm, 80×10mm, and 90×10mm Pololu Wheels with 3mm D-hubs as well as the 80×10mm Pololu Multi-Hub Wheels.

3D models of Pololu Wheels 32×7mm (1MB zip)

This file contains 3D models (in the step file format) of the Pololu Wheels 32×7mm.

What are the Pololu wheels made of?

• The material used to make the hubs of Pololu wheels is ABS (also known as Polylac) PA-747.
• The material used to make the tires of Pololu Wheel 42×19mm is natural rubber.
• The material used to make the tires of all Pololu wheels (except the Pololu Wheel 42×19mm) is silicone rubber.
