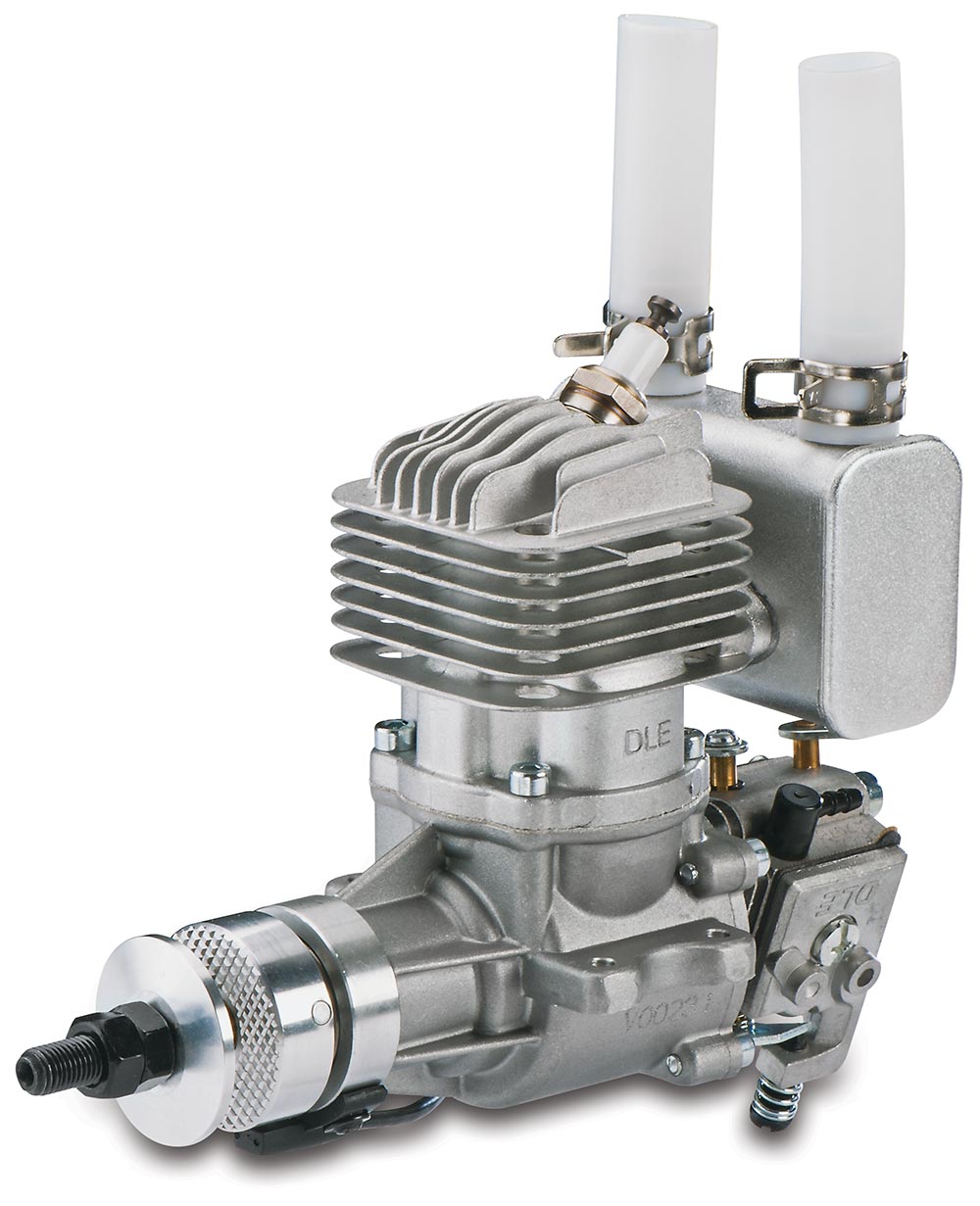

Motor Naftero DLE-20RA

Glow size — rear-exhaust installation ease!

The DLE-20RA has the features you’re looking for. Rear-exhaust design makes it an easy install even in cramped cowls — and a beam mount makes installation easy. A rear pumper carb offers consistently superior performance, as well as simple installation and adjustments.

A generous package of “extras” and electronic ignition for starting ease and top performance make the DLE-20RA another attractive alternative to glow… and a solid buy for value and performance.

Features:

• Light, efficient design for a high power-to-weight ratio
• Lightweight piston for fast acceleration, excellent compression and low vibration
• CNC-machined parts for high performance and long life
• Sealed crankshaft bearings
• Perfect for use with tuned pipes
• Custom pumper carb
• Updated muffler for excellent aeration and power

DLE electronic ignition The newly updated DLE electronic ignition features ultra-smooth idle, easy starting and awesome throttle transition.

Loaded with “extras!” Loaded with “extras!” The DLE-20RA includes a gasket, bolts, throttle arm extension and two exhaust extensions, in addition to a compact muffler, spark plug and manual.

Specifications:
Stock Number: DLEG0420
Displacement: 20.0 cc (1.22 cu in)
Bore: 1.26 in (32 mm)
Stroke: 0.98 in (25 mm)
Weight:
Engine: 1.46 lb (660 g)
Muffler: 2.8 oz (80 g)
Ignition Module: 4.6 oz (130 g)
Total: Weight: 1.92 lb (870 g)
RPM Range: 1,700-9,000
Output: 2.5 hp @ 9,000 rpm
Requires: unleaded gasoline, 2-cycle oil, ignition battery & propeller
Includes: electronic ignition module, muffler, spark plug, manual, gasket, bolts, throttle arm extension & two exhaust extensions
Suggested Propellers: 14×10, 15×8, 16×6, 16×8 & 17×6
Suggested Break-in Prop: n/a
