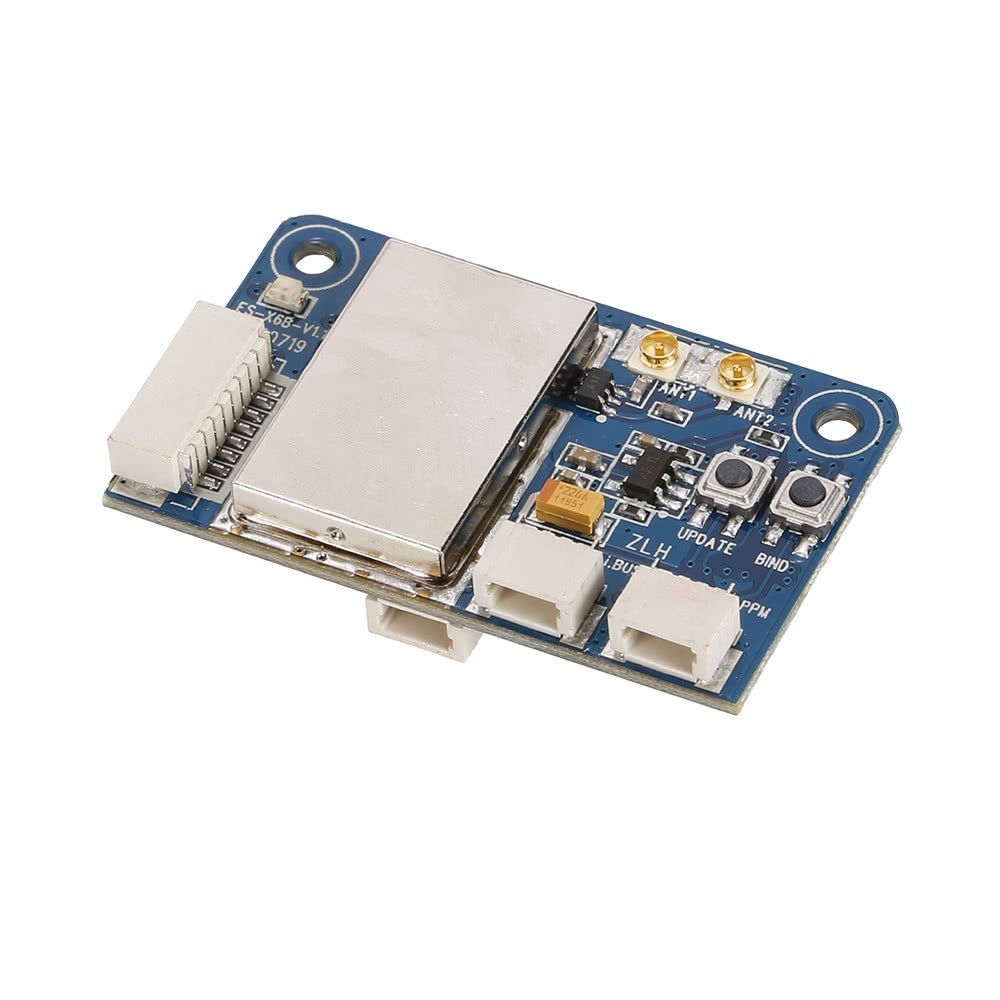

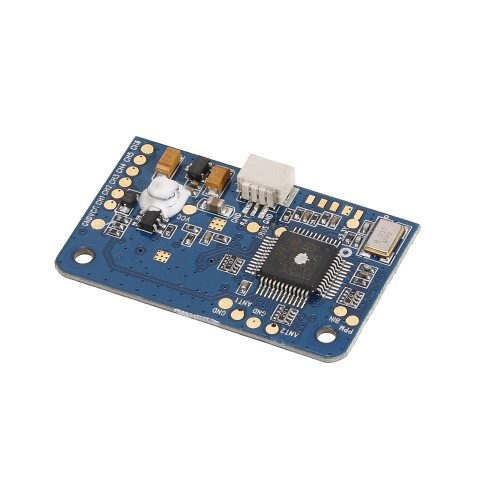

FlySky X6B 2.4G 6CH i-BUS PPM PWM Receiver




Recibir aviso de stock

FS-X6B is a 6 channel two-way receiver designed for multi-rotor aircraft. It uses the AFHDS 2A(Automatic Frequency Hopping Digital System) protocol and dual omnidirectional antenna with superior noise reduction techniques. It’s compact, easy to install and boasts a rich easy to use interface. FS-X6B support 6 channel PWM output, standard PPM output and i-BUS support for up to 18 channels alongside a reliable voltage sensor interface.


  • Brand Name: Flysky
  • Item: X6B i-BUS 2.4GHz 6CH Receiver
  • Channels: 6(PWM), 8(PPM), 18(i-BUS)
  • Model Type: Multi-Rotor
  • RF Range: 2.408-2.475 GHz
  • Band Width: 500KHz
  • Number of bands: 135
  • RF Power: No more than 20 dBm
  • RX Sensitivity: -95dBm
  • 2.4GHz protocol: AFHDS 2A
  • Modulation Type: GFSK
  • Stick resolution: 1024
  • Low voltage alarm: Yes
  • DSC port: PPM/PWM/i-BUS
  • Antenna Length: 93mm (Dual Antenna)
  • Power input: 4.0-8.4V
  • Online Update: Yes(Wireless)
  • Range: >300m
  • Weight: 4.5g
  • Size: 36*22*7.5mm
  • i-BUS Port: Yes
  • Certificate: CE0678, FCC ID: N4ZX6B00
  • Compatible Transmitter: All AFHDS 2A Transmitters, FS-i10 FS-i6 ,FS-i6S, FS-i6X, FS-i4, FS-i4X.


  • 1X Flysky X6B 2.4GHz 6CH Receiver
  • 4x Cables
