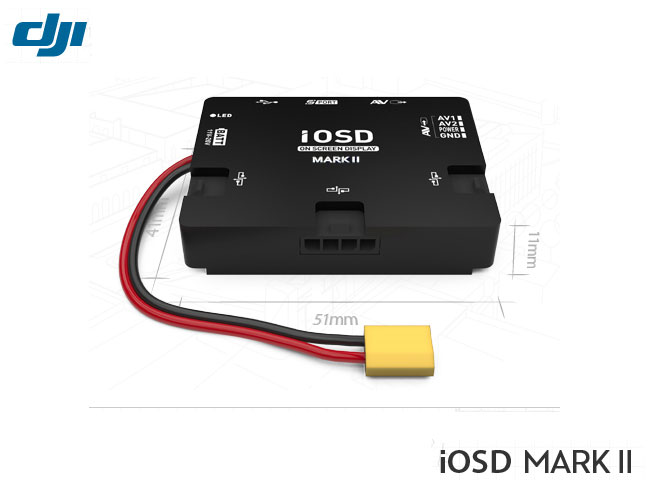

The DJI iOSD MARK II adopts a highly integrated design which makes it very exquisite and practical. Many of the real-time aircraft flight information, such as the status and coordinates of the aircraft, are superposed on the video which gives you a more involved and safety flight experience.
The DJI iOSD MARK II should be used in conjunction with the DJI autopilot system, such as WooKong-M, Naza-M or Naza-M V2. This will undoubtedly give you a fantasitc flight performance. Depending upon DJI’s accumulation of historic and reliable information integration technology, the iOSD MARK II can grab the most accurate first-hand flight data information in the shortest possible time.
The DJI iOSD MARK II supports two video input sources: PAL or NTSC mode, which can be selected remotely by an R/C transmitter switch. By doing this the pilot can achieve double video alternation during flight and can also set one source for the aerial camera and the other one for FPV. This will ensure the nose direction of the aircraft is under control and a safety return during fimling.
The R/C TX switch can also change the wireless video transmitter channel remotely when user uses the wireless video transmitter designated by DJI. This design has brilliantly avoided the inconvenience of manual switch on the ground. Should there be any video signal interference during flight the pilot can switch channels immediately to finish the flight mission.
The DJI iOSD MARK II has a USB interface for future online upgrade in order to get a better user experience and free functional escalation.
DJI iOSD MARK II has a built-in BEC module which supports 3S – 6S LiPo battery. It provides the power supply for the camera and the main controller, which improves the power supply reliability.
The iOSD MARK II now provides Assistant Software and supports online upgrade which makes it easy for you to acquire new functions. The current iOSD on the market can be upgraded to the new iOSD MARK II to have the flight log functions.
The DJI iOSD MARK II can record the flight log, which will help you to record the input and output information of every channel, GPS signal, power voltage, home distance and height, etc. (The current iOSD on the market will have flight log function after firmware upgrade.)
