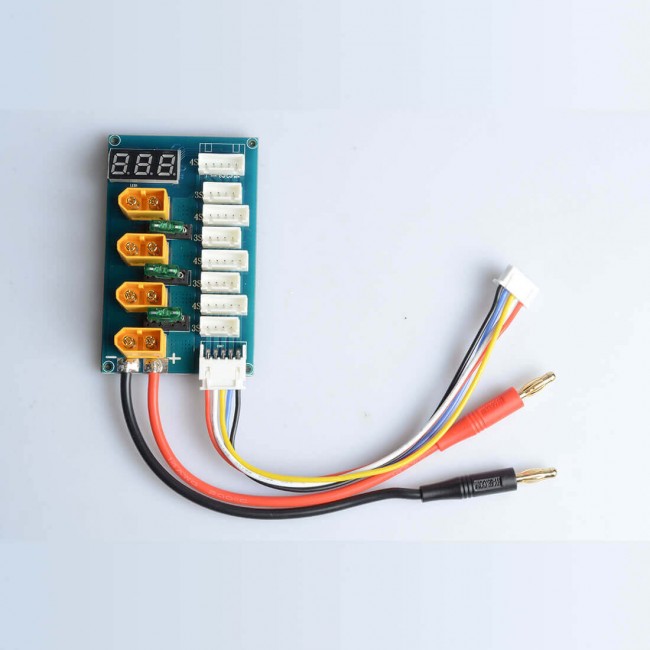

AKK XT60 Parallel Charging Board

En stock


$85.40

En stock

Features:

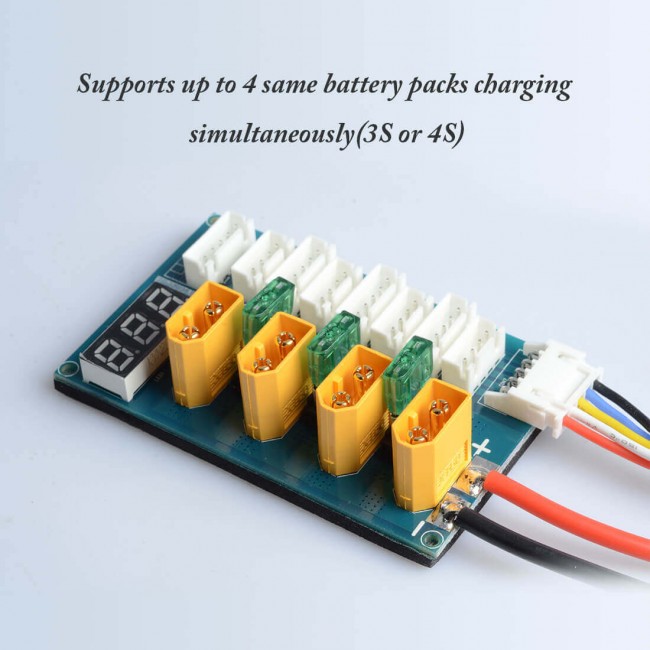

  • Supports up to 4 same battery packs charging simultaneously (3S or 4S lipo)
  • LED Display to show total voltage and the voltage of each battery cyclically
  • High-quality AMASS XT60 connectors; replaceable 30A fuse between any two ports; thicken PCB copper foil provide a 20A safe charging current
  • Compatible with most balance charger that with banana port

Specifications:

Compatible battery types: 3S/4S Lipo

Maximum charging current: 20A

Fuse: 30A fuse×3 (replaceable)

No-load current: 17mA-22mA

Input connector: banana plug

Output connector: XT60

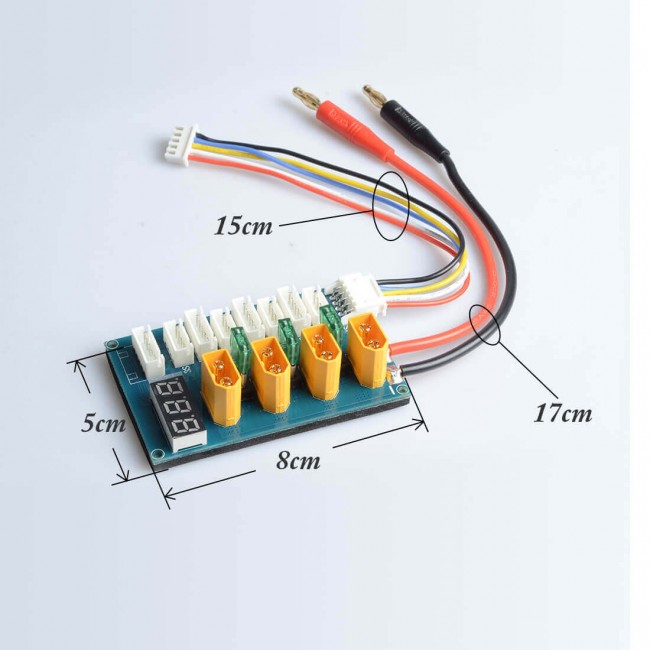

Board size: 8*5cm

Weight: 65g

Cable length: banana plug cable: 17cm

5 pin cable: 15cm



Voltage display instructions:

It will display a total voltage firstly;then display average voltage of single cell in a 3 seconds cycle (“OC1″=the 1st cell; “OC2″= the 2nd cell…)

Note:

1. Only supports charging the same type of battery at the same time(3S/4S Lipo)

2. Please keep it in a safe place to prevent short circuits

Package Includes:

1x AKK XT60 Parallel Charging Board
