6~26V DC In (suggested 12V/3A)
2~6S XT60 LiPo battery or Adapter
6*Micro JST 1.25/JST-PH 2.0 (support JST/Micro Losi by the cable), 4.2/4.35V and0.2/0.6A output switchable
USB output: 5V/2.4A
“INP”= total Inputvoltage
“USB”= USB port Outputvoltage
“CH1″…”CH6″=Output voltage of port 1~6
(voltage display with ±0.1V margin of error)

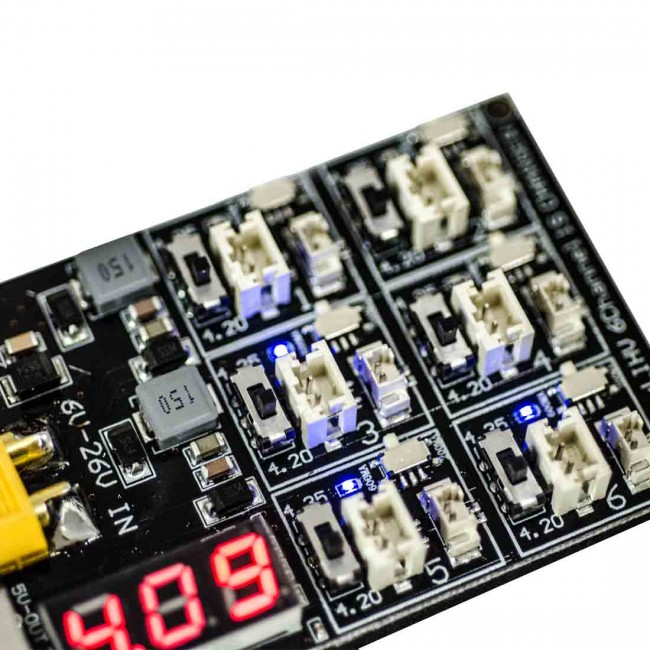

light flash: no battery connected
light on: charging
light off: charge completed
1.Do not use “4.35V” to charge 4.2V LiPo battery, “4.35V”applies only to 1S LiHV battery.
2.Each port only support one battery charging at a time.
3.If the time is sufficient, it is recommended that use 0.2A to charge batteries.
4.Never charge batteries unattended.

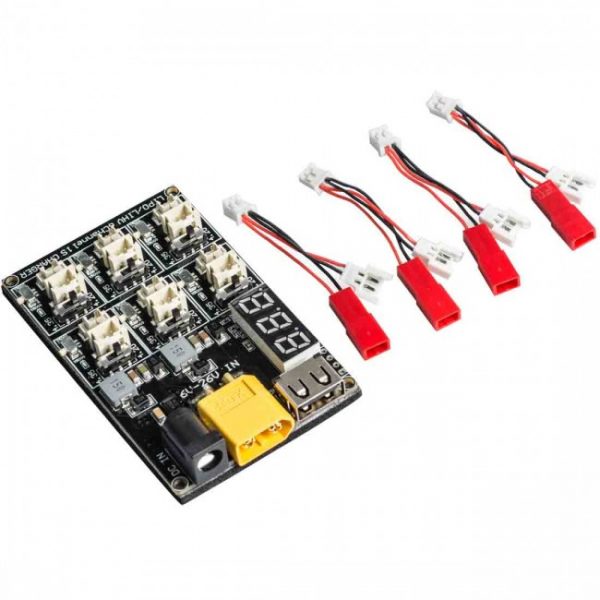

1* charge board
4* JST-PH 2.0 to JST and Micro Losi cable
