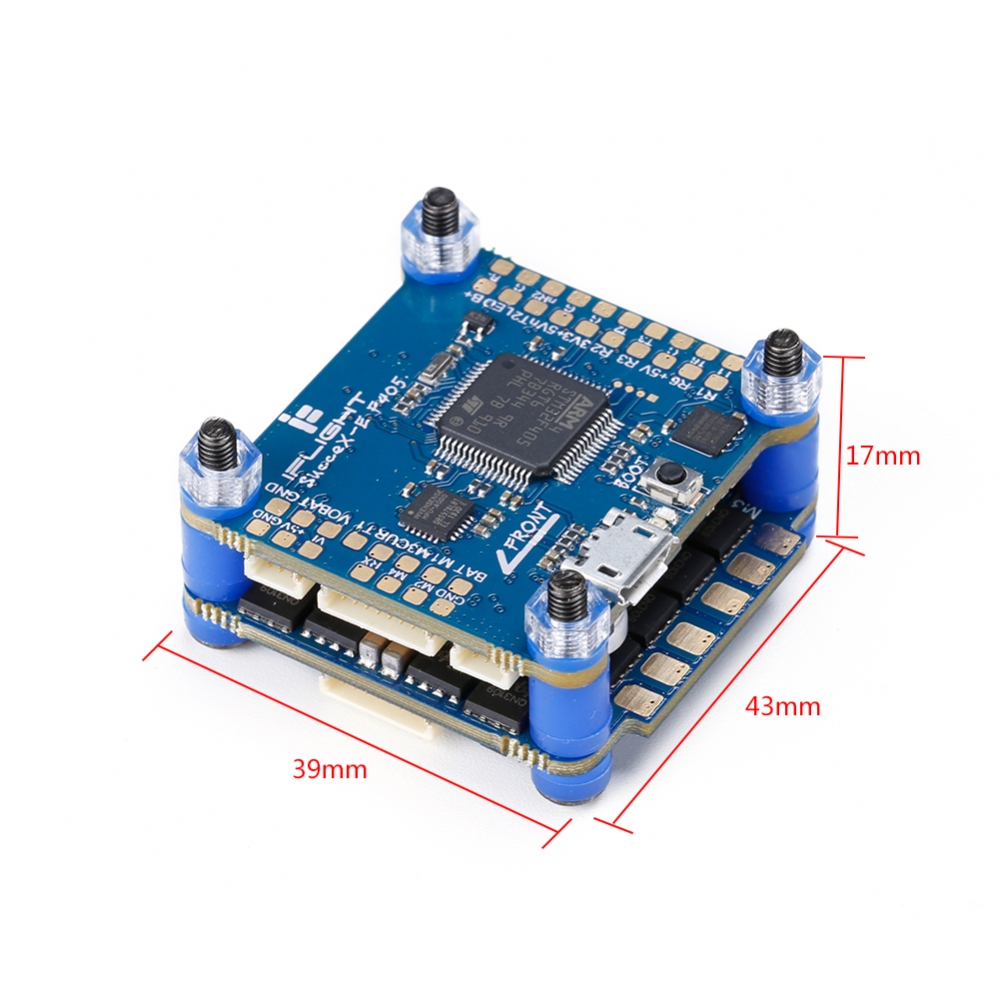

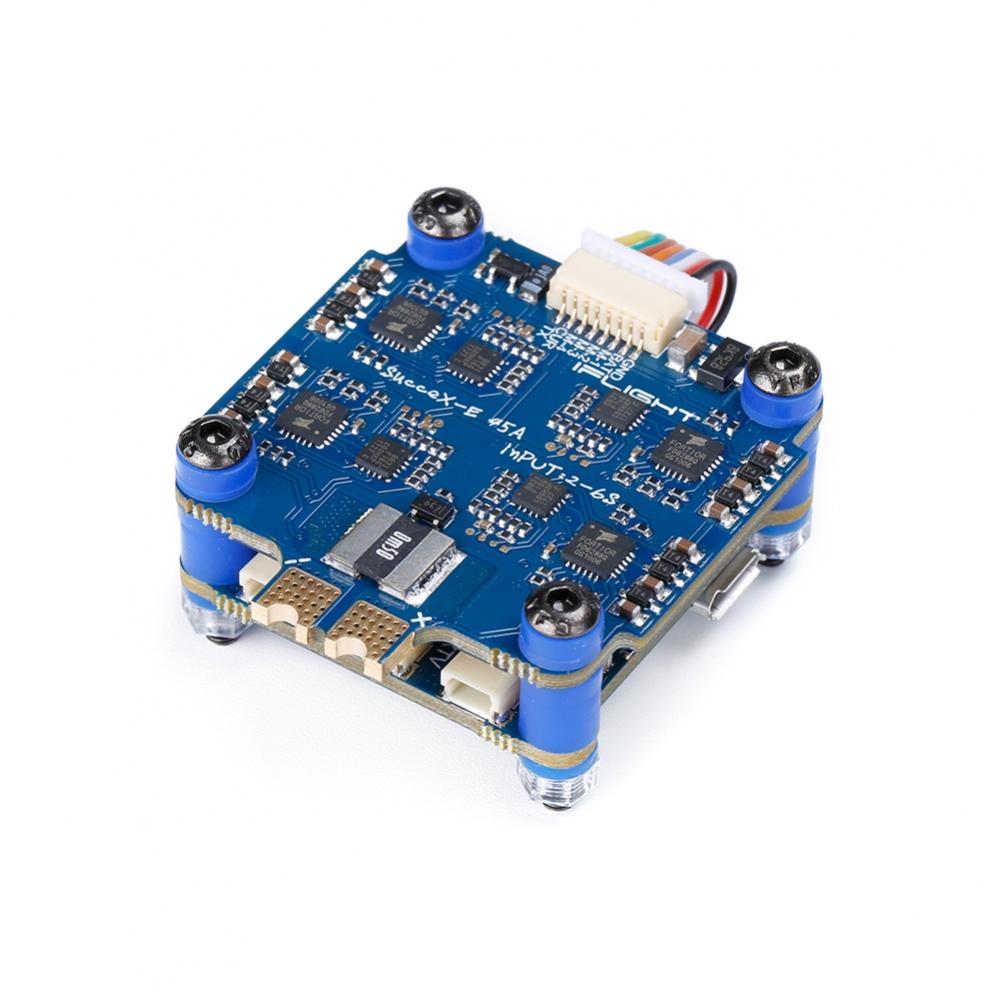

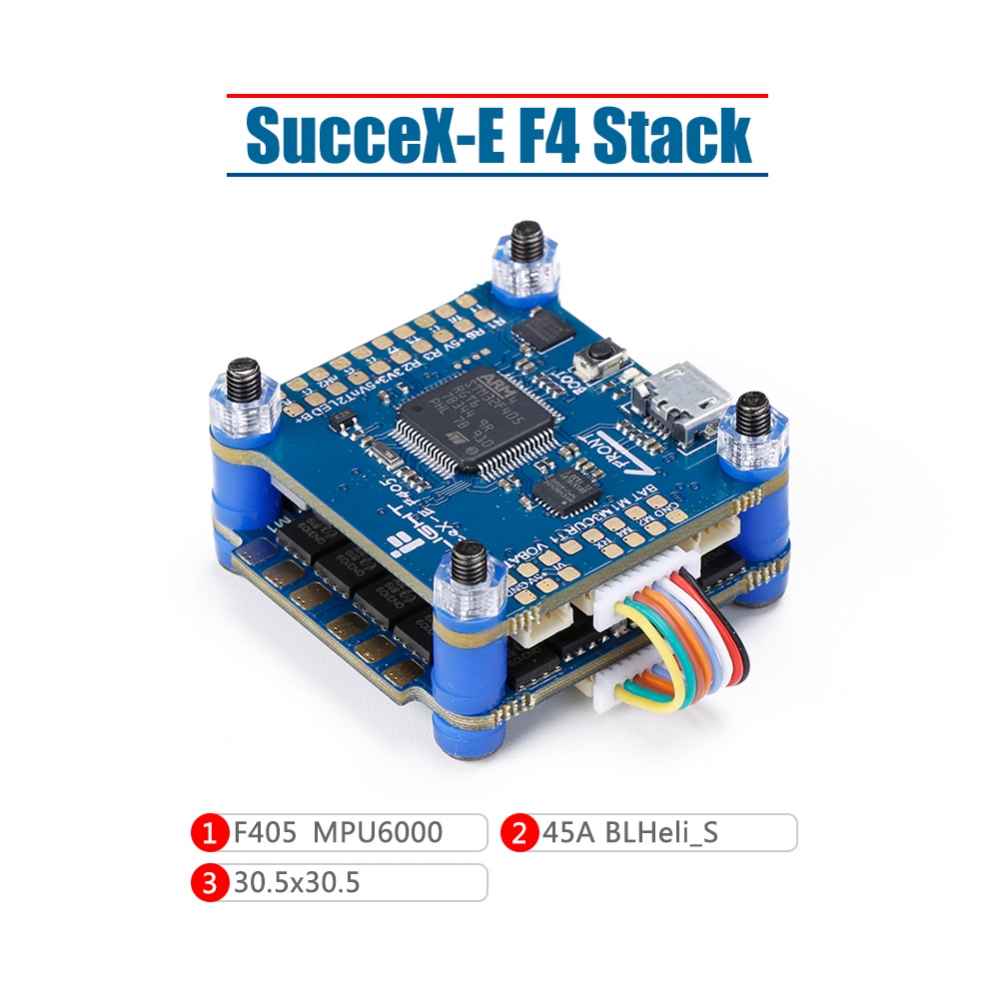

SucceX-E F4 45A 2-6S Flight Stack (MPU6000)

En stock


$4,945.23

En stock

PRODUCT DESCRIPTION

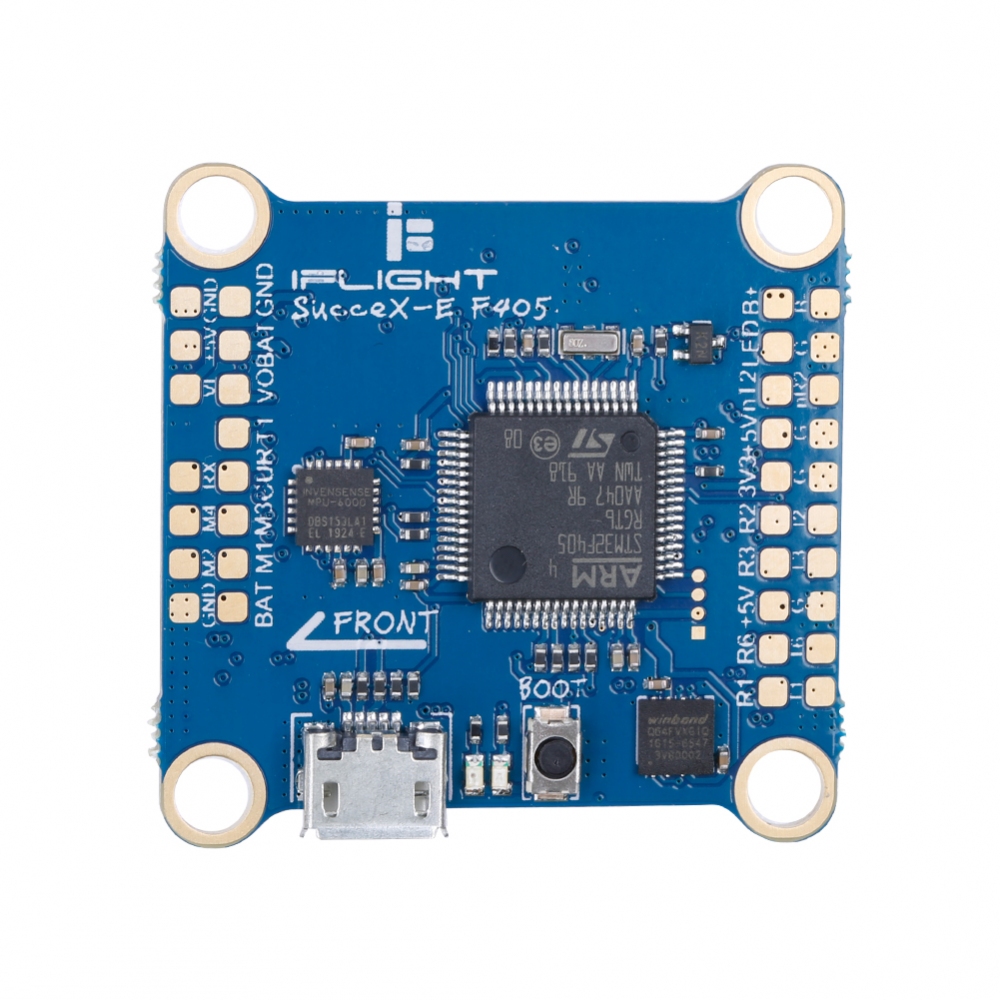

SucceX-E F4 Flight controller Specification:

– MCU:STM32F405

– IMU:MPU6000

– Betaflight OSD:YES

– Blackbox:8MB

– 4X Uarts(1 2 3 6 )

– 8 x Dshot/Proshot/Oneshot output

– 8 x individual ESC power/ signal pads

– 1 x Group of Gnd/Vbat/M1/M2/M3/M4/Cur/TX

– VTX protocol:YES(IRC Tramp)

– WS2812 led Strip:YES

– Baro:No

– Beeper:YES

– Input:2-6S(Max 8S)

– BEC:5V/2.5A cont

– Firmware :betaflight_4.0.5_BETAFLIGHTF4.hex

Physical

– Mounting:30.5*30.5mm,φ4mm with Grommets φ3mm

– Dimensions:36*36mm

– Weight:7.6g

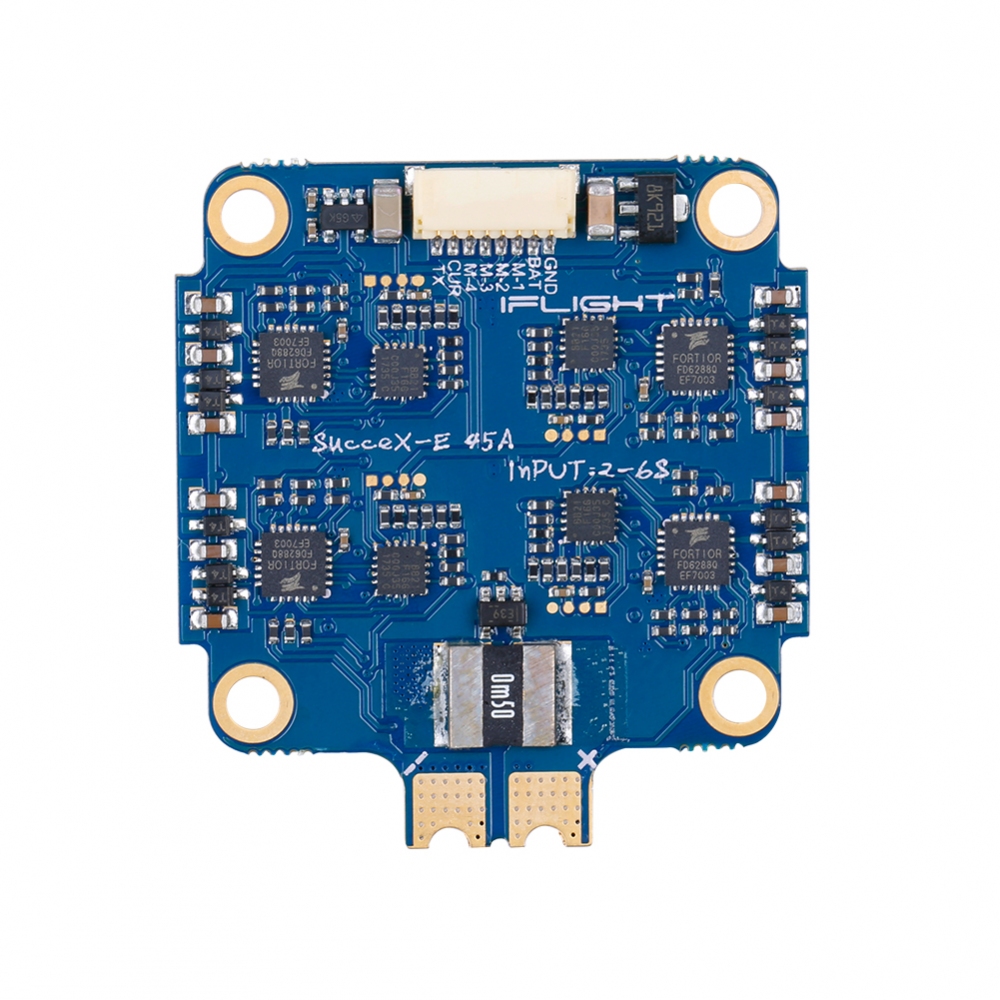

SucceX-E 45A 4in1 ESC Specification:

– Dimension: 40*43mm

– Mounting Holes: 30.5*30.5mm/Φ3mm

– Weight:14.4g

– Supports 2-6S Lipo input

– STM32F051 MCU, 48Mhz Runs BLHELI 32.X Firmware

– Current sensor: YES

– BEC: NO

– Supports: DShot DShot150/300/600/MultiShot/ OneShot etc.

– Target: G-H-30 BLS 16.7

-BLHeliSuite download: http://www.mediafire.com/file/1tn449x6815upat/BLHeliSuite16714901.zip/file

Downloads:*SucceX-E F4 MANUAL

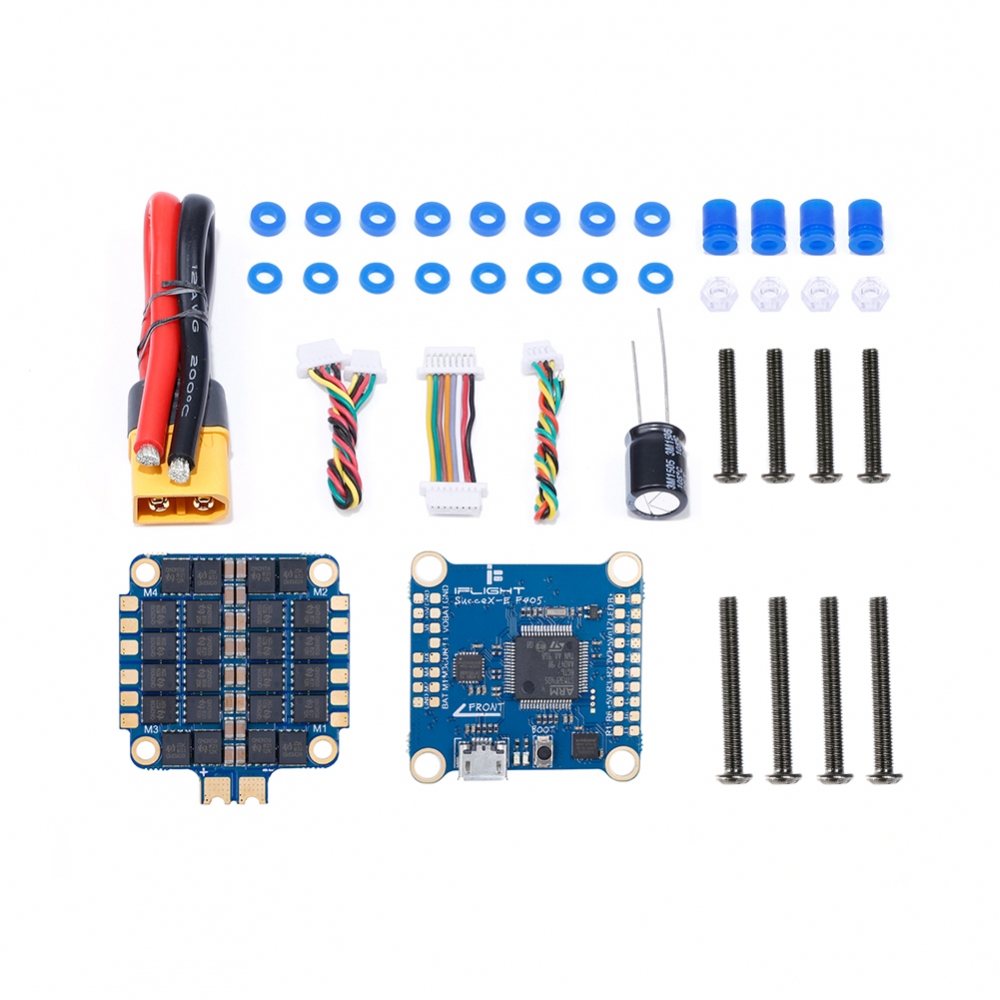

Package included:

-1pc x  SucceX-E F4 Flight controller

-1pc x 45A 4in1 ESC

-1x Wires bag
