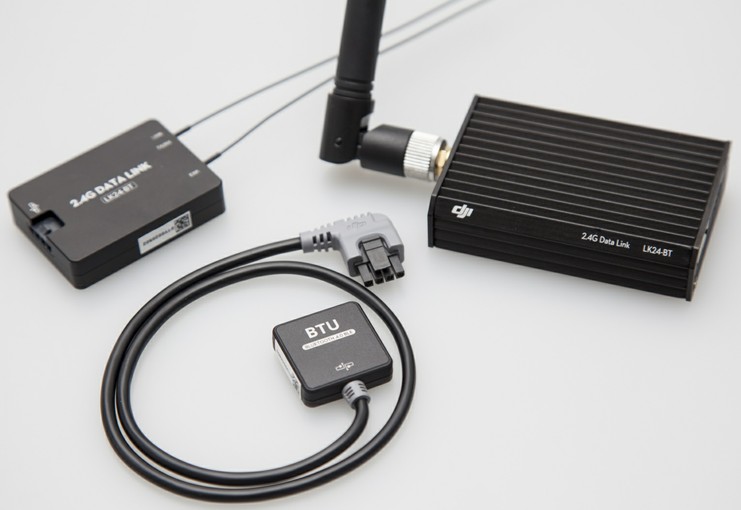

DJI BT DataLink 2.4GHz

The Wongkong-M Waypoint Ground Station is the upgraded version of the Wongkong-M Single Waypoint Ground Station. It improves the function of way point editing for the ground control station. The line of DJI waypoint products provides waypoint mode, F channel controller, general purpose servo action, and 6 route templates. The maximum way points that could be added are twenty. It also supports the changing and editing of the flight route before or during the fight.

DJI offers 2.4Ghz and 900MHz datalink to achieve long-range two-way communication. The datalink maximum distance is up to 15km. The ground end also links with USB power supply that is convenient for outdoor use. The wireless module uses FHSS technology which is verified by FCC and CE certification, DJI datalink has many advantages such as: high data rate, stable performance, strong anti-interference capability, and long communication distance. The 2.4GHz datalink’s power consumption is 550mw and 900MHz datalink 1.5W, which is big advantage for long-distance flight missions.

The entire ground control system combines GPS 6DOF inertial measurement unit, magnetometer, and pressure altimeter sensors to optimize robustness of algorithms and robotic control logics. Ground control system utilizes advanced GPS/INS proprietary algorithm technology in the entire design. Even in adverse conditions, high vibration and high demand environments, the helicopter maintains flight stability accurately to ensure mission success rate.

System design and use of high grade components enables fast GPS acquisition time. Compass calibration with 45° tolerance is easier and faster than previous models.

DJI Ground Station designed around intuitive Google 3D map offering GIS data. Pilot can operate and plan flight routes anywhere, use PC mouse to zoom in/out of 3D Maps which can be downloaded to PC and used elsewhere in offline mode.

In addition to the aircraft location, heading and altitude, our ground station also provides other flight data such as attitude, air speed, vertical speed, throttle and pitch percentage and servo voltage at all times.

Ground Station equipped with intelligent adaptive system. During abnormal signal loss , the system will adjust to environment to activate failsafe appropriately. The aircraft will implement and complete the default route mission automatically, even when datalink signal is lost.

When user is in manual mode, the aircraft will hover when RC signal lost. But after 10S, if the signal doesn’t come back, the aircraft will find the take-off point precisely and return using the safest route and height . Then the aircraft will hover over the take-off point automatically after its activate point. This function offers the intelligent security protection for user’s expensive aerial equipment. In addition, the user can always click the return button, the system will interrupt the current mission immediately to order to return the aircraft to back the take off point .

Operator can either use keyboard or joystick with ground station system to control the helicopter movements and attitude via DJI data link. Manual mode can be applied when out of radio (transmitter) signal range by using either keyboard or joystick for control. This provision/feature allows control when the radio (transmitter) stops working after the mission has started.

DJI emphasises the principle of user friendliness in all designs, the ground station offers 3D graphic interface, a breakthrough from traditional UAV system with ease of installation, less complexity and ease of operation in comparison to others in the market. DJI ground station control can save time, improve operation efficiency, ease mission planning supporting flexible and intelligent control for any mission.

Click on any point on a 3D map, the aircraft can achieve the coordinate point automatically, particularly useful when some routes cannot be set in advance. Flight altitude and flight speed can also be adjusted rapidly and accurately according to the change of data and waypoints when the user has to change the target and flight mission.

Beyond Visual Range (BVR) of Ground Stations System designed for high-end commercial and industrial automatic flight that requires a reliable long-range wireless communication device (Data Link) and ground station control system (GCS). The flight route, default action of photographs, and airdrop can be planned in advance on the ground station control software.

Waypoint controller advance development offers automatic take off and landing feature which can be applied using either by radio transmitter or ground station keyboard. Take off and landing (ascending and descending) speed is 0.2 to 0.5 meters per second.

Waypoints can be set to the number of destinations up to 50. They are the basic unit of composition routes tasked to meet the complex requirement of the routes operating. Users can carry out special settings for each waypoint, such as height, latitude and longitude, flight speed, the nose toward, the turning patterns and residence time etc. User can batch all destinations, by setting once if required.

There are 3 different fight routing planning modes: fixed-point turn mode, coordinated turn mode and adaptive coordinated turn mode.

Fixed-point Mode: Aircraft flies to the first fixed point accurately, then stay at the fixed point and then flies to the next fixed point . The fixed points and the length of each stay also can be set in advance.

Coordinated turning mode: The route of aircraft is calculated with turning speed and turning angle. The helicopter would fly from one point to another point without stopping.

Adaptive coordinated turning mode: It is almost the same performance with Coordinated Turning mode. But the flight routine will be more accurately detailed with a planned flight routine in this mode.

Real time flight altitude data is vital in real time flight data collection. Correct Ace Waypoint altitude setting determines the success of the flight mission. There are two displays for height; normal height and elevated mode. In normal height mode, the system records the helicopter at 0 height reference point- above (+) value means above ground and (-) value means below ground. In elevated mode, the helicopter altitude is the same as elevation according to Google Map. Due to altitude, the sensor can be affected by weather condition, and an offset of altitude may be necessary. Please refer to manual for detail setup.

DJI’s autopilot system provides two servo outputs to support custom servo feature. These two outputs can be used between the controller and or 3rd party devices. These outputs for example can be used for camera shutter operation, air-drop activation or other switching devices.

During a flight mission, task start, delay and repetitive time can be set. By setting the time period, repeat time, start delay and repeat time parameters; operator can customize these functions to a specific application.

During flight mission, operator can re-edit mission such as modifying flight routes, or waypoints to achieve a real-time adjustment to complete the objectives. Operator can also click “Pause” button to suspend the mission; aircraft will slow down and hover awaiting new assignment. When and if signal is lost, the system will intelligently pick the optimal route to return home automatically.

User also can customise main controller’s F1 to F4 channel ‘ s output signal to achieve the extra device operation such as Servo, Gimbal and Camera controlling. (Note:WooKong-M only supportF1, F2)

Relative coordinates Editor is an accurate drawing tool of regular geometric figures on a 3D Map. Operator can set an initial waypoint then next waypoint with angle and distance details. Ground control system will calculate the next waypoint coordinates accurately.

Ground control system can simulate real flight environment, operator does not have to perform actual flight to complete mission in simulated mode. The simulation mode is good for training and mission test.

All routes/waypoint settings can be exported and saved from the controller to any computer (PC). The saved files can be imported for future use.
